Lead-apron selection should begin with the wearer's working position, required body coverage and the radiation-safety programme for the procedure. Compare the exact model and published lead equivalency rather than treating garment thickness, weight or marketing terms as a substitute for tested protection.
Compare frontal, wrap-around, vest-and-skirt, overlap and certified lead-apron configurations by coverage, lead equivalency, core material and fit.
IndoSurgicals Private Limited is a lead apron manufacturer, supplier, and exporter in India, offering radiation protection apparel for hospitals, diagnostic imaging centres, radiology departments, cath labs, C-arm procedures, fluoroscopy, dental radiology, operating environments, and other healthcare applications involving medical X-ray radiation. Our X-ray lead apron range includes frontal protection aprons, vest-and-skirt designs, full-protection wrap-around aprons, full-overlap and partial-overlap configurations, BARC-certified apron models, conventional wrap-around aprons, and half lead aprons.
Different medical procedures and working positions require different styles of radiation protection apparel. IndoSurgicals therefore offers frontal protection lead aprons, frontal protection lead vest & skirt sets, full-protection wrap-around lead aprons, full-protection vest & skirt sets, BARC-certified lead aprons, and half lead aprons so healthcare professionals and institutional buyers can select a configuration according to required body coverage, lead equivalency, wearing duration, core material, and radiation-safety protocol.

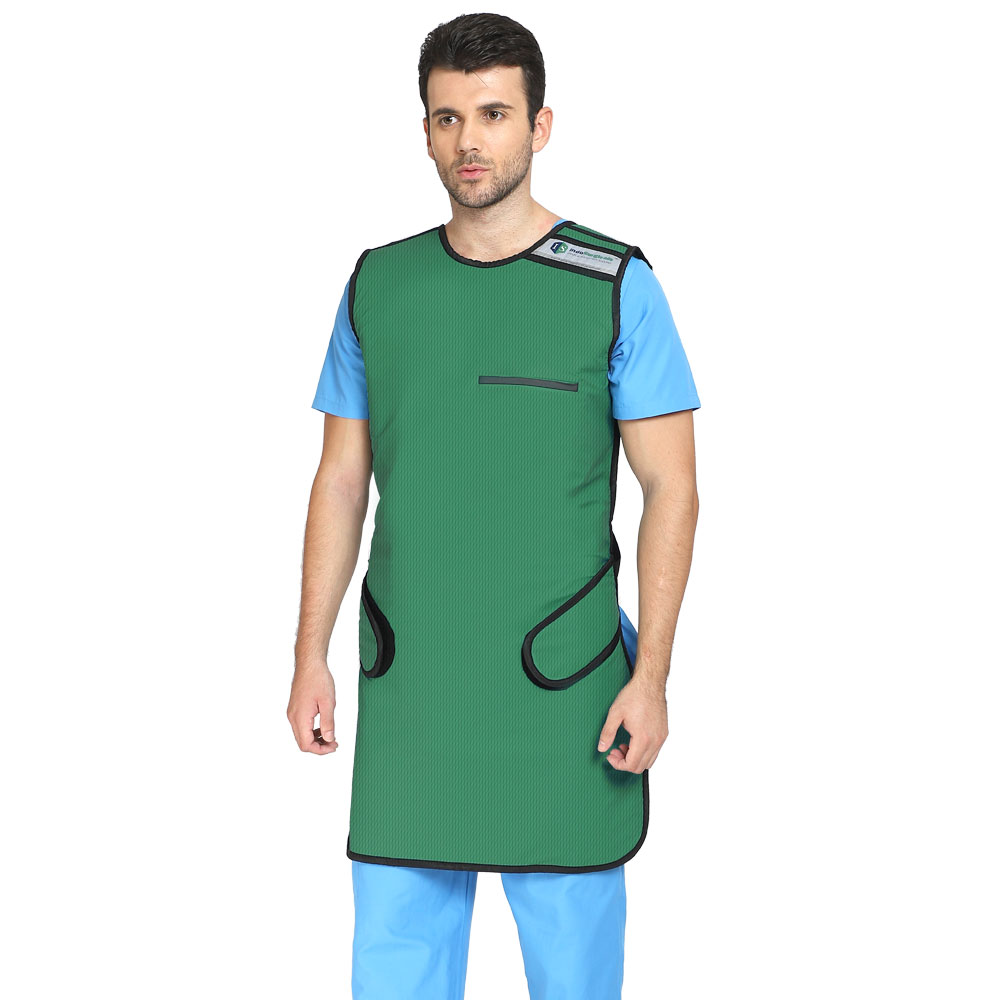

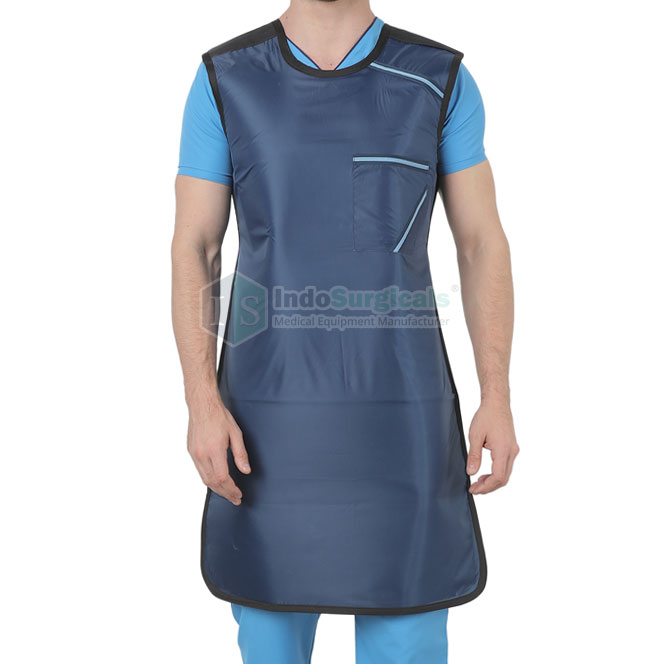

The Frontal Protection Lead Apron is intended for users whose normal working position primarily exposes the front of the body to scattered X-ray radiation. It provides front-side torso protection while keeping the rear comparatively open, making it a practical configuration where rear shielding is not required by the procedure or institutional radiation-safety assessment. Available protection levels include 0.35 mmPb and 0.50 mmPb lead equivalency, with different core-material and size options available according to the selected configuration.

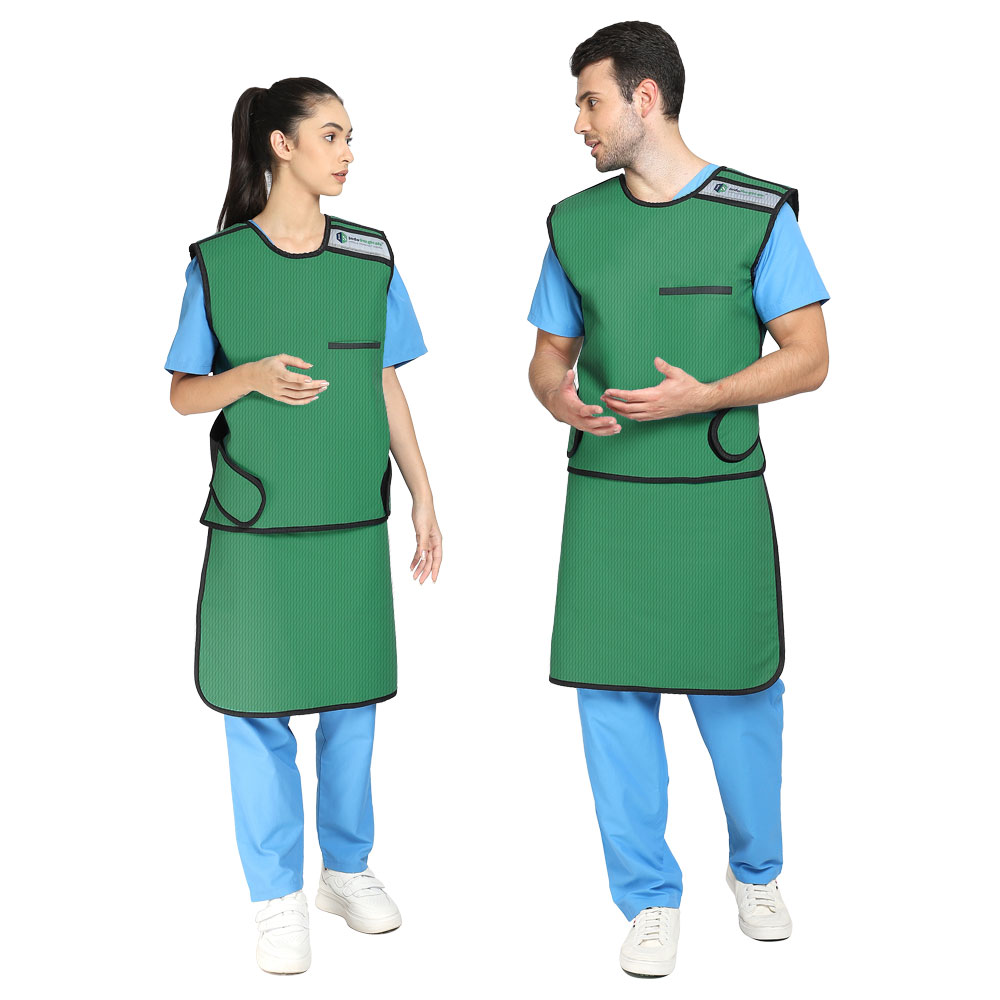

For users who prefer a two-piece design, the Frontal Protection Lead Vest & Skirt divides the garment between an upper vest and a lower protective skirt. This arrangement distributes garment weight between the shoulders and waist instead of placing the entire load on the shoulders. It can be particularly useful for radiologists, surgeons, cardiologists, technicians, and other healthcare professionals who wear an X-ray protection apron for extended procedures.
Where front and rear protection are required, IndoSurgicals offers Full Protection Wrap Around Lead Aprons in both one-piece and vest-and-skirt configurations. The newer full-protection designs are available with nominal frontal protection of 0.35 mmPb or 0.50 mmPb and rear protection according to the individual model specification. These designs are suited to procedures where the wearer may receive scattered radiation from more than one direction, including interventional radiology, cath lab work, C-arm procedures, fluoroscopy, and other image-guided clinical applications.

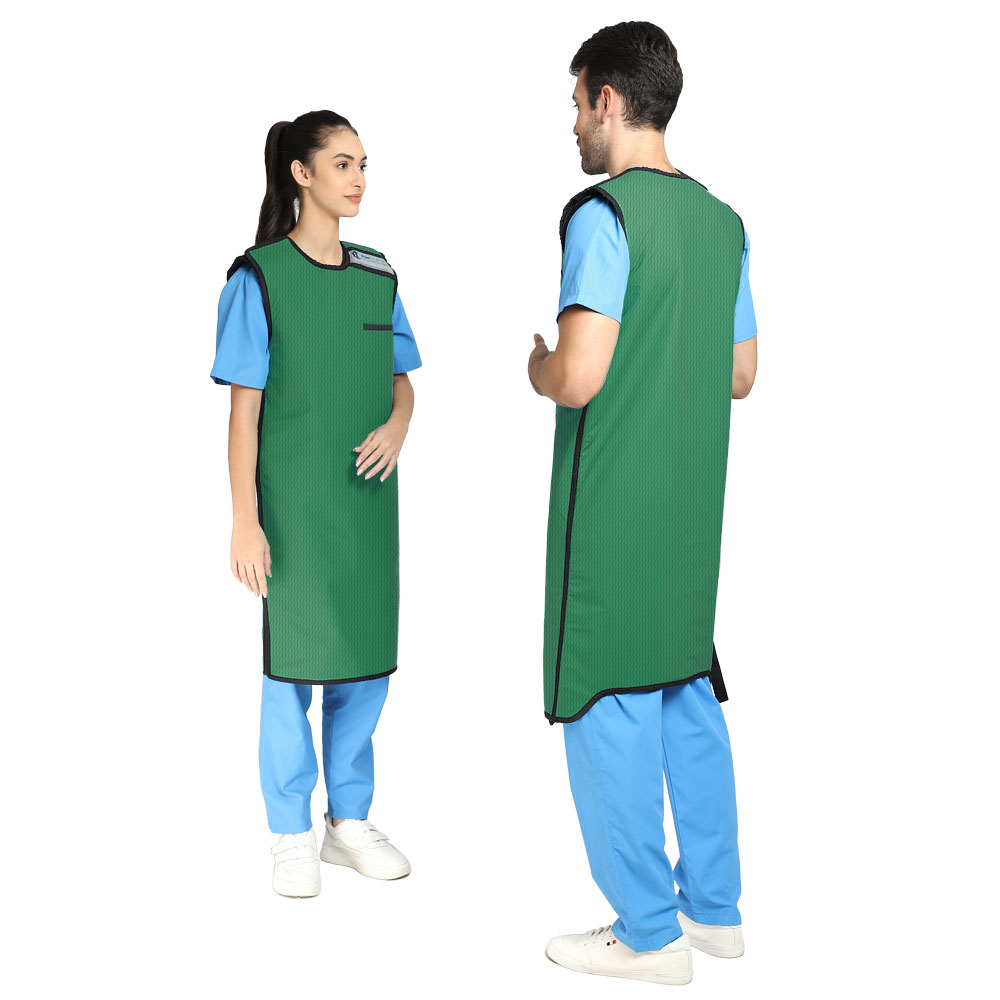

The Full Protection Full-Overlap Lead Apron uses overlapping front panels to create the specified frontal protection while also providing rear-body coverage. A corresponding Full-Overlap Lead Vest & Skirt provides similar front-and-back protection in a two-piece format, helping distribute garment weight between the shoulders and waist. These configurations are useful for buyers who require broad body coverage together with a choice between one-piece and two-piece radiation protection apparel.

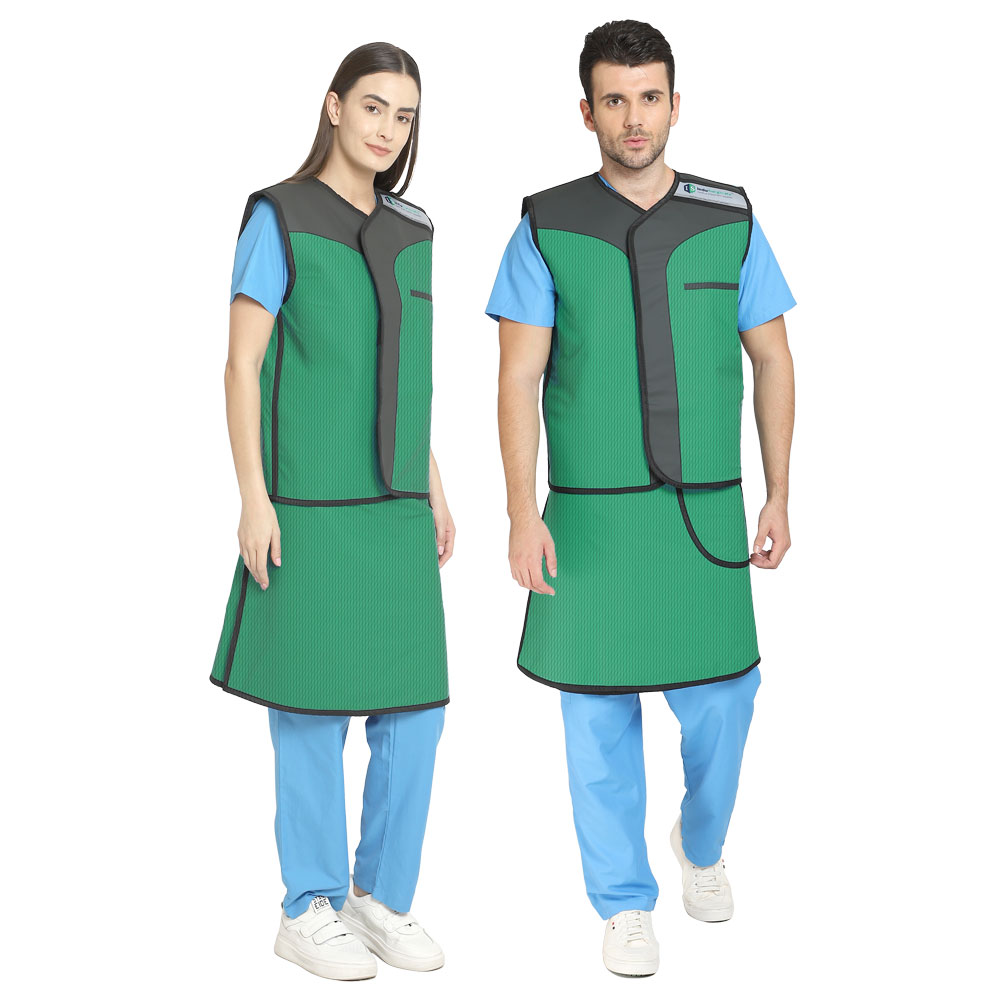

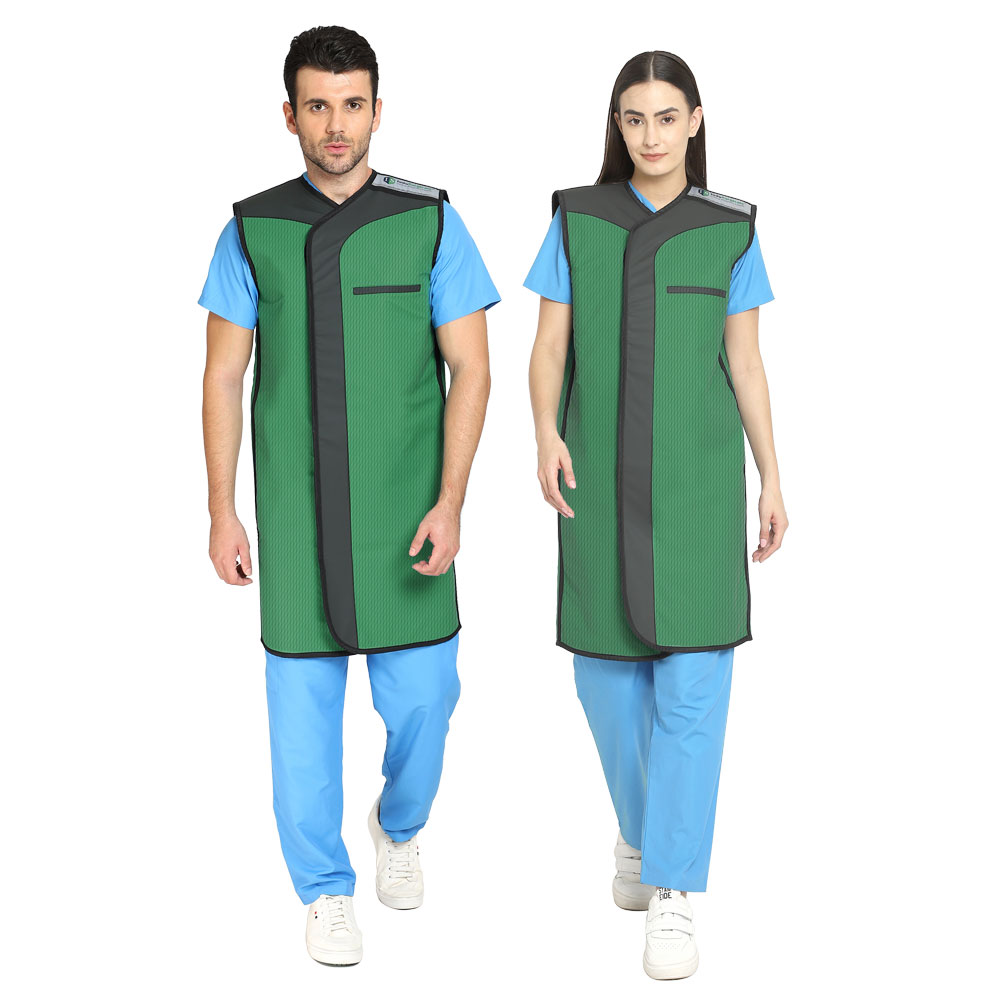

IndoSurgicals also offers Full Protection Partial-Overlap Lead Aprons and matching Partial-Overlap Lead Vest & Skirt designs. In these models, each front panel carries the selected nominal frontal protection, while the correctly overlapped central area combines the protection of both panels. With a 0.35 mmPb configuration, the correctly overlapped region provides approximately 0.70 mmPb combined lead equivalency; with a 0.50 mmPb configuration, the overlap provides approximately 1.00 mmPb. Areas outside the overlap retain the selected nominal front protection.

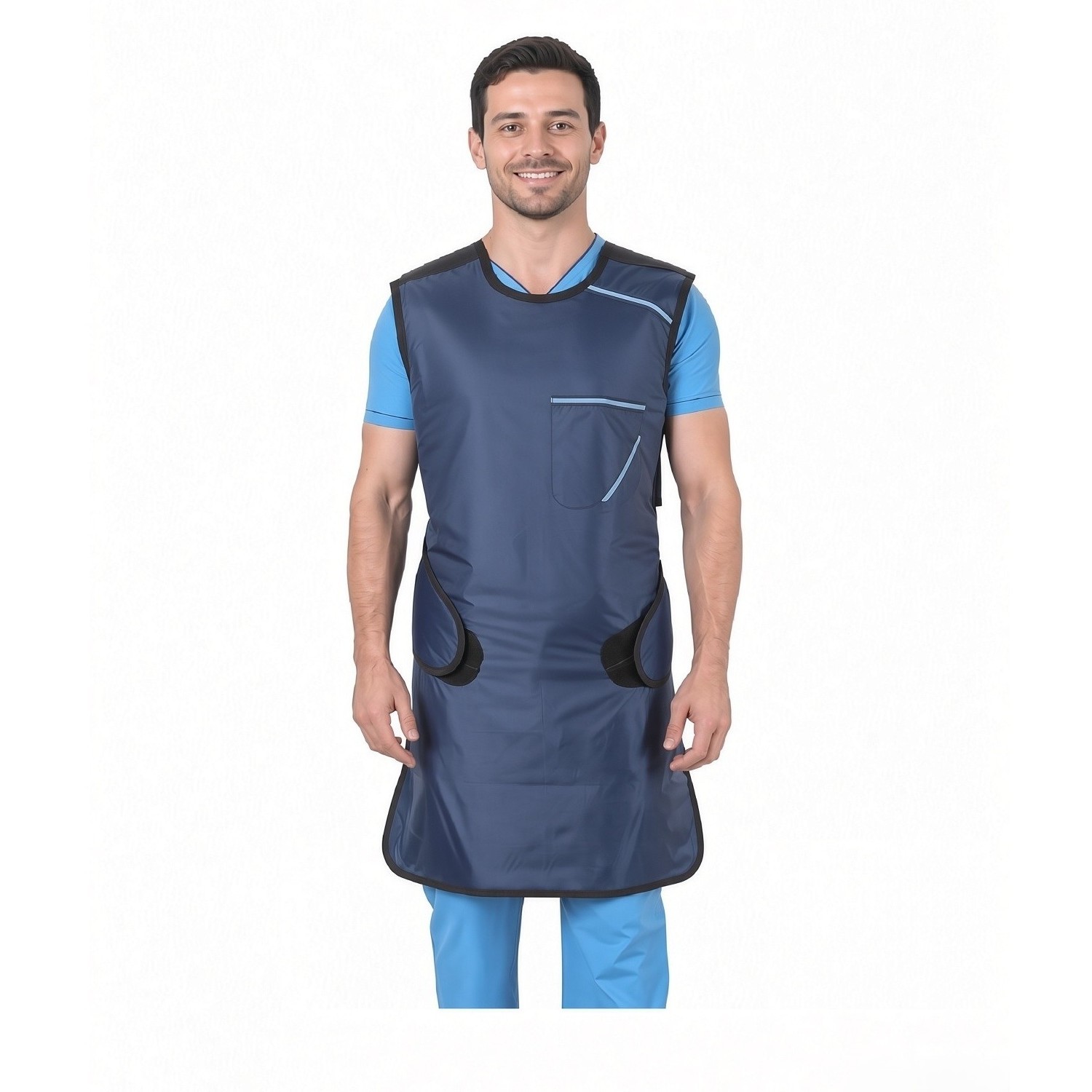

The range also includes separately listed BARC Certified Lead Aprons for buyers whose procurement specifications require the certification applicable to those particular models. Available configurations include a strap-type apron with 0.35 mmPb lead equivalency and another certified apron offered in 0.35 mmPb and 0.50 mmPb versions. Buyers should always verify the certification document, product configuration, lead equivalency, test scope, and current regulatory requirements applicable to their institution before procurement.

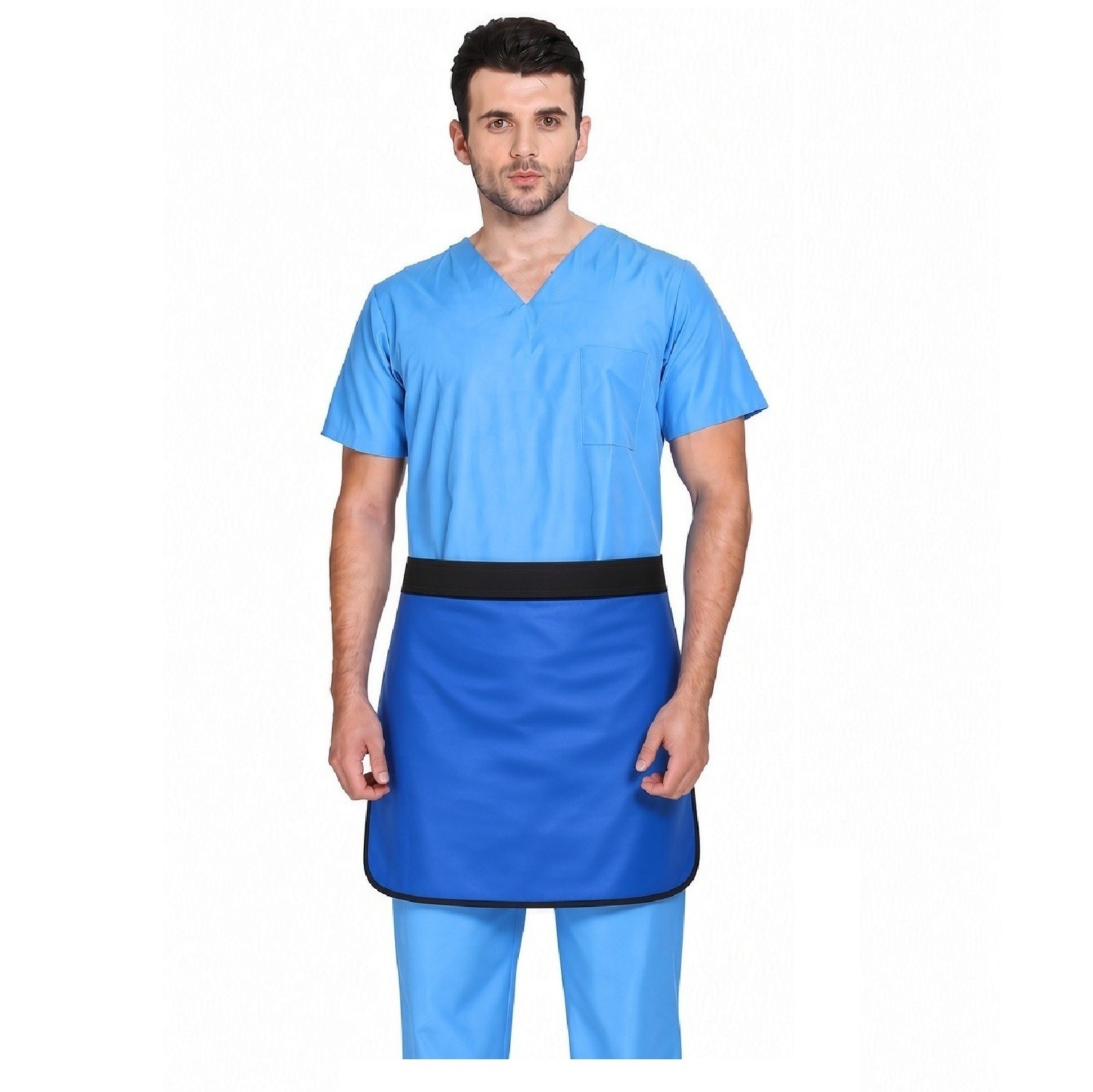

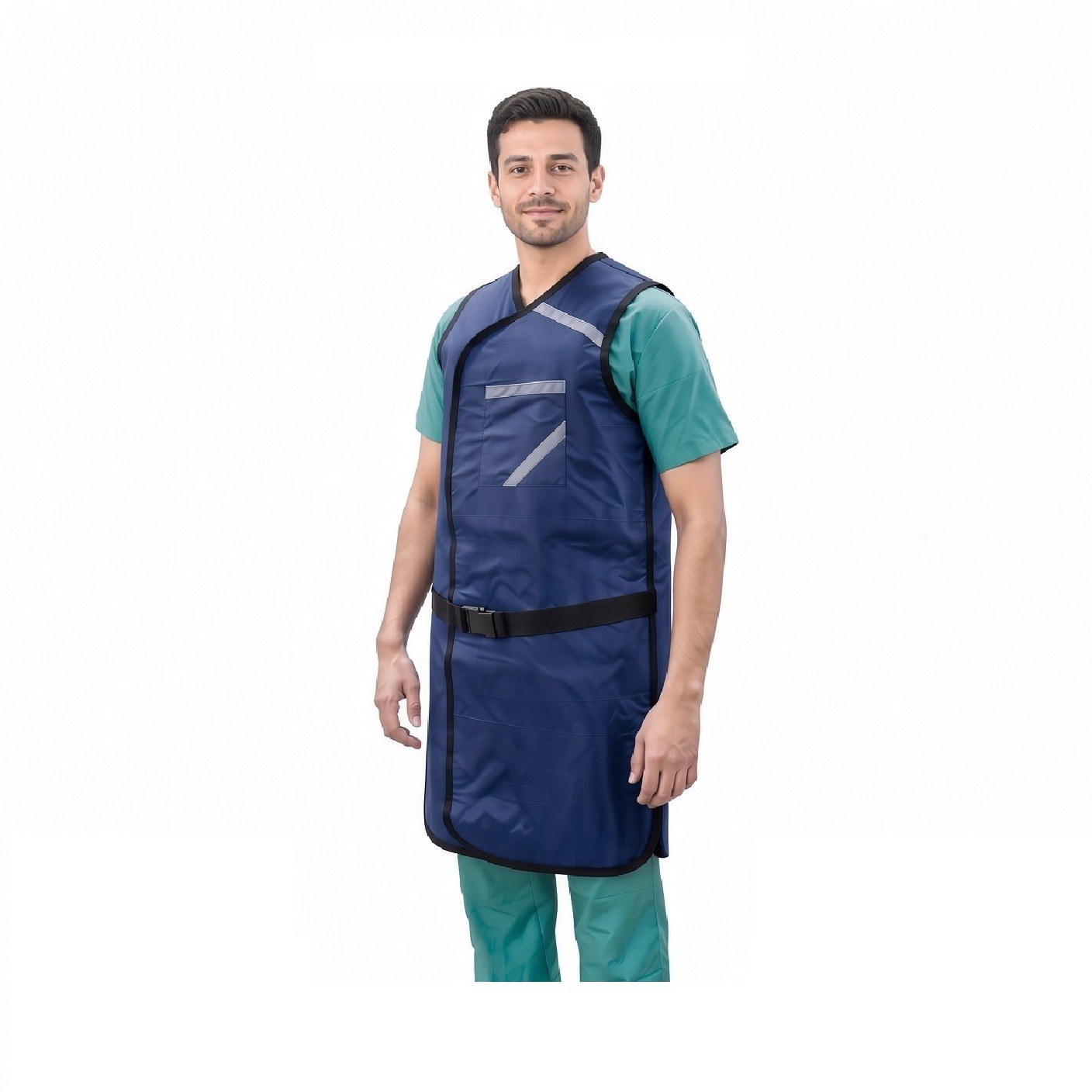

A conventional Wrap Around Lead Apron is also available for users requiring front and rear coverage in a straightforward one-piece format. In addition, the Half Lead Apron provides a smaller radiation-protection garment for applications where shielding of a more limited body region is required. Because coverage differs significantly from a full-length apron, the appropriate design should be selected according to the procedure, user position, and radiation-safety guidance followed by the healthcare facility.
IndoSurgicals manufactures lead aprons in both conventional lead-based and lead-free radiation protection core options on selected product ranges. Core-material choice affects garment weight, flexibility, lead-equivalent shielding characteristics, and the type of technical documentation available. Buyers looking for a lightweight lead apron or lead-free X-ray apron should compare the actual core material, apron pattern, size, protection level, and finished garment weight rather than relying only on terms such as lightweight or lead-free.
The two principal protection levels used across the configurable lead apron range are 0.35 mmPb and 0.50 mmPb. Lead equivalency describes the radiation attenuation performance relative to an equivalent thickness of lead; it should not be confused with the physical thickness of the complete finished garment. Selection between 0.35 mmPb and 0.50 mmPb should be based on the procedure, radiation-safety assessment, applicable protocol, and institutional requirements rather than on garment weight alone.
Lead aprons are used by radiologists, radiographers, X-ray technicians, interventional specialists, cardiologists, surgeons, orthopaedic teams, urologists, dentists, nurses, and other healthcare professionals working around medical X-ray equipment. Typical environments include radiology departments, cath labs, C-arm operating rooms, fluoroscopy suites, diagnostic imaging centres, dental facilities, and other clinical areas where occupational protection from scattered X-ray radiation is required.
Correct sizing and fit are important for both protection and wearing comfort. IndoSurgicals offers multiple apron sizes and selected customisation options. Depending on the product and order requirement, buyers may specify apron style, protection level, core material, size, outer fabric, binding, pocket configuration, colour, and embroidered identification. Institutional buyers ordering for multiple users should provide individual sizing information wherever possible rather than relying on a single universal size.
Proper care also helps preserve a radiation protection apron. Lead aprons should be stored flat or on a suitable lead-apron hanger and should not be repeatedly folded, sharply creased, or placed under heavy objects. The outer surface should be cleaned using a compatible method, and facilities should follow their approved programme for inspection of radiation protection garments and verification of continued shielding integrity.
As a radiation protection apron manufacturer in India, IndoSurgicals supplies lead aprons to hospitals, radiology centres, diagnostic facilities, medical colleges, healthcare groups, distributors, dealers, government and private institutions, project buyers, and international customers. We support bulk lead apron requirements, institutional procurement, distributor enquiries, customised apron requirements, and export orders with product-selection and quotation assistance. Explore the available Lead Apron models above to compare coverage style, lead equivalency, core material, fit, and protection configuration before selecting the appropriate radiation protection apparel for your application.
Tailored Fit & Custom Lead Aprons:
Selected IndoSurgicals lead aprons can be configured according to user and institutional requirements. Available customisation may include size, lead equivalency, core material, apron pattern, outer fabric, binding, pocket configuration, colour, embroidered text, and embroidered artwork. Customisation availability should be confirmed for the selected product and quantity.
