Portable Autoclaves

IndoSurgicals Private Limited is an ISO 9001 & ISO 1345 certified manufacturer, supplier & exporter of Portable Autoclaves.


Please send your Portable Autoclaves requirement with quantity at info@indosurgicals.com so that we can provide you our best CIF/C&F prices.

Electric Autoclave Pressure Cooker Type (Mirror Finish) Aluminum Body

Electric Autoclave Pressure Cooker Type (Mirror Finish) Aluminum Body
Product Details :
  • All autoclaves are constructed from heavy gauge aluminum. It’s generates steam under pressure and temperature between 120°C to 135°C.
  • Made from seamless Aluminium, top loading autoclaves. Seamless construction ensures bacteria free environment.
  • 25-30 minutes sterilizing cycle at 121º c.
  • With two stages over pressure protection system incorporating a calibrated continuous bleeding pressure stopcock and pressure release weight valve.
  • With heat resistant handles and steam release / control valve.
  • Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle.
  • Sterilization zone in green colour is shown from 15 psi to 20 psi (OR 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c.
  • Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm² (ii) lb/inch². Full scale dial of pressure gauge is 0-30 lb/ inch² or 0-2 kg/ cm². Caution zone in red colour.
  • Supplied with inner & outer stand.
  • Optional : 1 Hr. Rotary Timer and Sterilizing Drum in extra cost
Mirror Finish, Electric, 220V. 50Hz. Single Phase
SKU Approx. Size (Dia. X H) Approx. Capacity (Ltrs.)
45000 220mm x 230mm + 38mm Lid (9"x11") – 1 KW Load 10 Ltrs. With Lid
45002 300mm X 260mm + 50mm Lid. (12"x12") – 2 KW Load 21 Ltrs. With Lid
45003 300mm X 300mm + 50mm Lid. (12"x14") – 2 KW Load 24 Ltrs. With Lid
45004 300mm X 350mm + 50mm Lid. (12"x16") – 2 KW Load 29 Ltrs. With Lid
45006 300mm X 400mm + 150mm Lid. (12"x22") – 2 KW Load 39 Ltrs. With Lid
45007 350mm X 330mm + 90mm Lid. (14"x16") – 2 KW Load 40 Ltrs. With Lid

Non-Electric Autoclave Pressure Cooker Type (Mirror Finish) Aluminum Body

Non-Electric Autoclave Pressure Cooker Type (Mirror Finish) Aluminum Body
Product Details :
  • All autoclaves are constructed from heavy gauge aluminum. It’s generates steam under pressure and temperature between 120°C to 135°C.
  • Made from seamless Aluminium, top loading autoclaves. Seamless construction ensures bacteria free environment.
  • 25-30 minutes sterilizing cycle at 121º c.
  • With two stages over pressure protection system incorporating a calibrated continuous bleeding pressure stopcock and pressure release weight valve.
  • With heat resistant handles and steam release / control valve.
  • Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle.
  • Sterilization zone in green colour is shown from 15 psi to 20 psi (OR 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c.
  • Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm² (ii) lb/inch². Full scale dial of pressure gauge is 0-30 lb/ inch² or 0-2 kg/ cm². Caution zone in red colour.
  • Supplied with inner & outer stand.
  • Optional : 1 Hr. Rotary Timer and Sterilizing Drum in extra cost
Mirror Finish, Non-Electric (External Fuel Heated)
SKU Approx. Size (Dia. X H) Approx. Capacity (Ltrs.)
45008 220mm x 230mm + 38mm Lid (9" x 11") 10 Ltrs. With Lid
45010 300mm X 260mm + 50mm Lid. (12"x12") 21 Ltrs. With Lid
45011 300mm X 300mm + 50mm Lid. (12"x14") 24 Ltrs. With Lid
45012 300mm X 350mm + 50mm Lid. (12"x16") 29 Ltrs. With Lid
45014 300mm X 400mm + 150mm Lid. (12"x22") 39 Ltrs. With Lid
45015 350mm X 330mm + 90mm Lid. (14"x16") 40 Ltrs. With Lid

Electric Autoclave Pressure Cooker Type (Epoxy Finish) Aluminum Body

Electric Autoclave Pressure Cooker Type (Epoxy Finish) Aluminum Body
Product Details :
  • All epoxy finish autoclaves are constructed from heavy gauge aluminum. It’s generates steam under pressure and temperature between 120°C to 135°C.
  • Made from seamless Aluminium, top loading autoclaves. Seamless construction ensures bacteria free environment.
  • 25-30 minutes sterilizing cycle at 121º c.
  • With two stages over pressure protection system incorporating a calibrated continuous bleeding pressure stopcock and pressure release weight valve.
  • With heat resistant handles and steam release / control valve.
  • Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle.
  • Sterilization zone in green colour is shown from 15 psi to 20 psi (OR 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c.
  • Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm² (ii) lb/inch². Full scale dial of pressure gauge is 0-30 lb/ inch² or 0-2 kg/ cm². Caution zone in red colour.
  • Supplied with inner & outer stand.
  • Optional : 1 Hr. Rotary Timer and Sterilizing Drum in extra cost
Epoxy Finish, Electric, 220V. 50Hz. Single Phase
SKU Approx. Size (Dia. X H) Approx. Capacity (Ltrs.)
45016 220mm x 230mm + 38mm Lid (9" x 11") - 1 KW Load 10 Ltrs. With Lid
45018 300mm X 260mm + 50mm Lid. (12"x12") - 2 KW Load 21 Ltrs. With Lid
45019 300mm X 300mm + 50mm Lid. (12"x14") - 2 KW Load 24 Ltrs. With Lid

Autoclave Wing Nut Type (Mirror Finish) Aluminum Body

Autoclave Wing Nut Type (Mirror Finish) Aluminum Body
Product Details :
  • All autoclaves are constructed from heavy gauge aluminum. It’s generates steam under pressure and temperature between 120°C to 135°C.
  • Made from Seamless aluminum base with Cast Aluminum Epoxy powder coated Lid, top loading autoclaves. Locking of lid by 6 nuts with rubber gasket seal in between (no metal to metal seal). Seamless construction ensures bacteria free environment.
  • 25-30 minutes sterilizing cycle at 121º C.
  • With two stages over pressure protection system incorporating a calibrated continuous bleeding Pressure stopcock and pressure release weight valve.
  • With heat resistant handles and with steam release /control valve and flexible metal exhaust tube.
  • Pressure Gauge : Colour coded pressure gauge showing internal chamber conditions during the cycle.
  • Sterilization zone in green colour is shown from 15 psi to 20 psi (or 1.034 bar to 1.378 bar) which is equivalent to temperature of 121°c to 127°c.
  • Dial size : 2.5". Dial show measurement in 2 units (i) kg/cm2 (ii) lb/inch2. Full scale dial of pressure gauge is 0-30 lb/ inch2 or 0-2 kg/cm2. Caution zone in red colour.
  • Supplied with inner and outer stand
  • Optional : 1 Hr. Rotary Timer and Sterilizing Drum in extra cost
Mirror Finish, Electric, 220V. 50Hz. Single Phase
SKU Approx. Size (Dia. X H) Approx. Capacity (Ltrs.)
45027 300mm X 300mm (12"x12") - 2 KW Load 21 Ltrs.
45028 300mm X 380mm (12"x15") - 2 KW Load 27 Ltrs.
45029 350mm X 380mm (14"x15") - 2 KW Load 37 Ltrs.
Mirror Finish, Non- Electric (External Fuel Heated)
SKU Approx. Size (Dia. X H)  Approx. Capacity (Ltrs.)
45030 300mm X 300mm (12"x12") 21 Ltrs.
45031 300mm X 380mm (12"x15") 27 Ltrs.
45032 350mm X 380mm (14"x15") 37 Ltrs.

Fully Automatic Microchip Controlled Autoclave

Fully Automatic Microchip Controlled Autoclave
Product Details :

This is the fully automatic microchip controlled autoclave. It's a unique vessel that generates steam under pressure and temperature between 120º to 125º Celsius. On reaching the right temperature the instruments are subject to a saturated steam environment for a pre specified time which results in safe and guaranteed sterilization. It is sturdily constructed in rust-proof, heavy gauge aluminium sheet. "This autoclave" offers a single step operation for quick and easy use and light sequences shows the cycle's profess. This autoclave offers the most cost effective solution for Steam sterilization.


Features

  • Light compact portable easy to use top loading autoclave.
  • Fast & silent sterilization cycle at 121 ° C.
  • The sterilization Cycle is Microchip controlled with time adjustment facility.
  • The LED Display shows the internal chamber temperature and sterilizing time.
  • It consumes less power & reduce electricity bills.
  • Equipped with double "Over Pressure" protection system.
  • Extended life Lid Gasket and Heating Element.
  • Color-coded Pressure Gauge show internal chamber condition during the cycle.
SKU Capacity (Ltrs.)
45037 10 Litre with Lid
45038 21 Ltrs. with Lid

Autoclave 10 Litre (Pressure Cooker Type) Stainless Steel Body

Autoclave 10 Litre (Pressure Cooker Type) Stainless Steel Body
Product Details :
  • Made of Stainless Steel 304 Grade.
  • Pressure cooker type Deluxe Quality.
  • Complete with Double Safety Valve.
  • Supplied with Inner Stand.
  • Approx. dimension: 9" x 11".
  • Approx. capacity: 10 Litre.
SKU Type
45035 Electric
45036 Non-Electric



Autoclave 30 Litre (Mirror Finish) Stainless Steel Body

Autoclave 30 Litre (Mirror Finish) Stainless Steel Body
Product Details :

Construction: These portable vertical autoclaves are made out of thick high quality stainless steel sheet, deep drawn to cylindrical shape, having no joints and welding. Seamless construction allows no bacteria residue and free from dirt accumulation. Fitted with pressure gauge, safety valve (weight type), seam/pressure release cock, lid handle. Lid is similar to pressure cooker with locking over rubber gasket.

Features:

  • Stainless steel seamless construction.
  • Portable vertical pressure type, easy to use top loading autoclaves.
  • The steam pressure inside with autoclave can develop from 1.10 kgf / sq.cm (15 psi) to 1.25 kgf / sq.cm (18 psi).
  • Equipped with top handle pressure gauge and pressure release valve.
SKU Size  Capacity (Ltrs.) Type
45033 350 x 300mm = 14" x 12"  30 Ltrs. Electric
45034 350 x 300mm = 14" x 12" 30 Ltrs. Non-Electric

Front Loading Autoclave 15 Litre

Front Loading Autoclave 15 Litre
Product Details :
  • Class-N Front Loading Autoclave.
  • With thermal vacuum, fully automatic with dry cycle.
  • 15 Lt. capacity with Micro Processor control.
  • Digital Display of Pressure & temperature
  • Double locker on door safety feature
  • A pressurized steam autoclave, with thermal air ventilation & drying cycle, handles N type instruments.
  • Automatic diagnostic & alarm system is installed

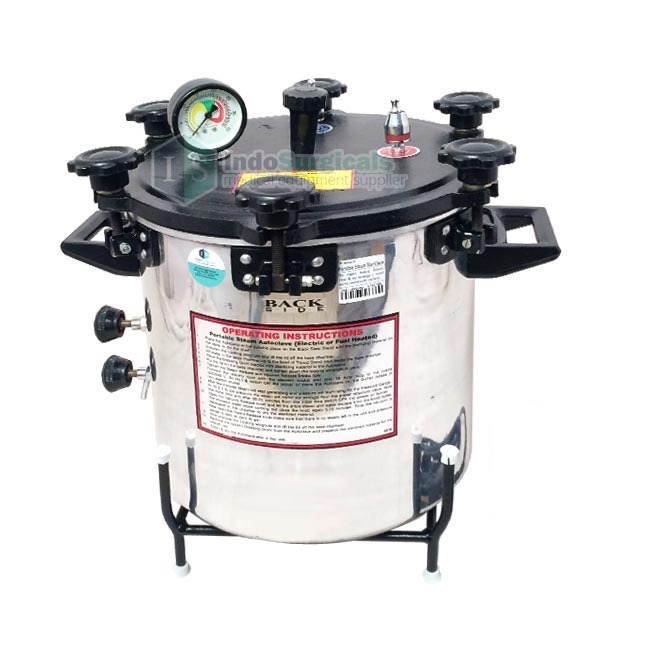

Autoclave, Aluminium, Seamless, Wing Nut Type, General Quality

Autoclave, Aluminium, Seamless, Wing Nut Type, General Quality
Product Details :

Construction: These autoclaves are made of aluminum. The drum is deep drawn & the ring on top is riveted. The lid is made by casting. Locking of lid by 6 nuts with rubber gasket seal in between (not metal to metal seal). Two safety valves, pressure gauge, flexible metal rubbing to exhaust air. Includes outer stand, inner aluminum container, inner tripod stand.

Mirror Finish, General Quality, Electric
SKU Size  Capacity (Ltrs.)
45021 300 x 300mm = 12" x 12"  20 Ltrs.
45022 300 x 380mm = 12" x 15" 25 Ltrs.
45023 350 x 380mm = 14" x 15" 35 Ltrs.
Mirror Finish, General Quality, Non-Electric
SKU Size  Capacity (Ltrs.)
45024 300 x 300mm = 12" x 12"  20 Ltrs.
45025 300 x 380mm = 12" x 15" 25 Ltrs.
45026 350 x 380mm = 14" x 15" 35 Ltrs.
