Ecg Machine

Please send your Ecg Machine requirement with quantity at info@indosurgicals.com so that we can provide you our best CIF/C&F prices.

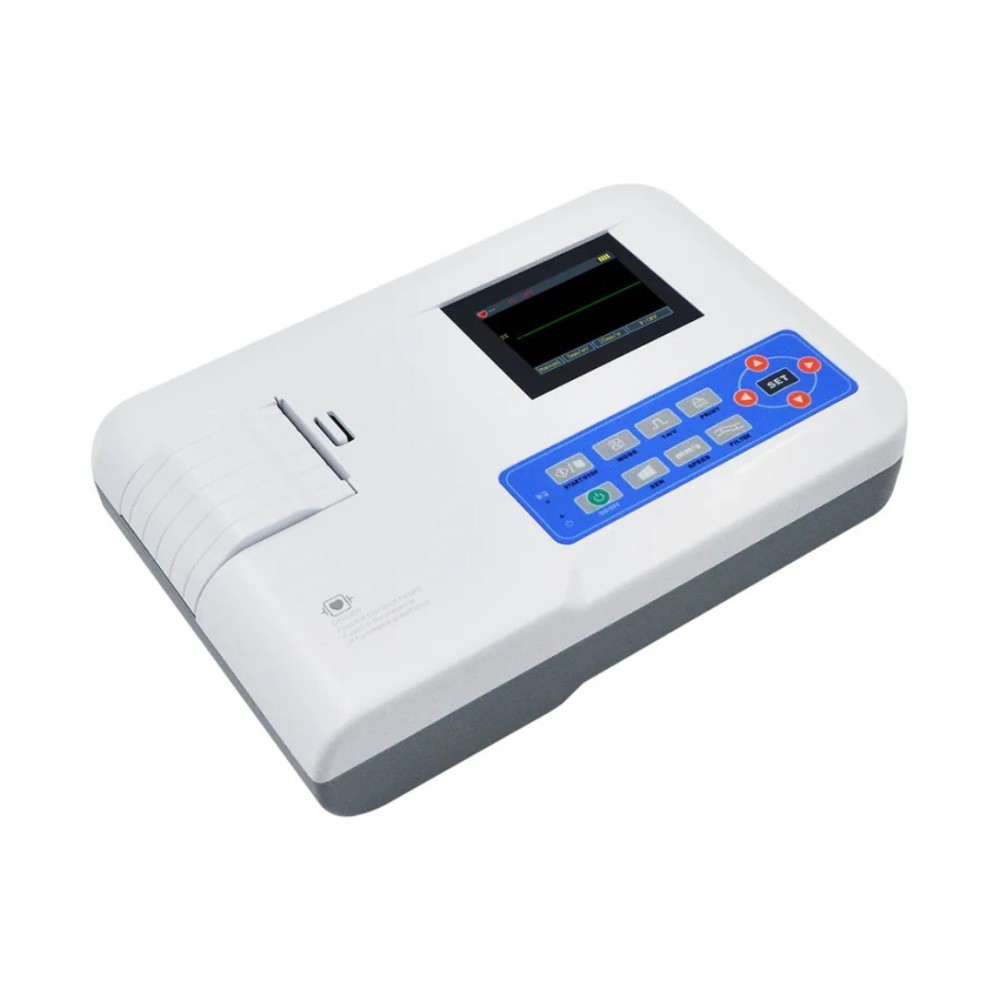

CMS 100G ECG Machine Single Channel

CMS 100G ECG Machine Single Channel
Product Details :

Specification:

  • 2.7" STN display shows the working status and ECG waveform. Check the waveform before printing to save record paper.
  • Output system: High-resolution thermal-array(8dots/mm), it needs not be adjusted. Recording frequency Response: Up to 150Hz.
  • The device can record exact single ECG waveform and remark. The mark includes: lead sign, sensitivity, paper speed, filter state.
  • Under automatic mode, just press the button once, it starts record procedure, which can enhance your work efficiency.
  • The language of operation interface include Chinese, English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Print language include English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian.
  • Display with 2.8'' (320x240) color TFT LCD and red and yellow highlight LED.
  • The keyboard's control is whole touch type, it's convenient to operate.
  • Unique Flash memory, storage for up to 2000 NIBP data and 78000 SpO2 data.
  • Classification: Class I, CF defibrillator proof.
  • Power supply: AC/DC, rechargeable lithium battery inside
  • This instrument can record 160 pieces of ECG waveform and 4hours, standby for 10 hours continually under the best DC state.
  • The figure of whole device is elegancy and gliding
  • According to protection degree of deleterious fluid, this device is IPX0.
  • Digital signal processor for effective inhibition of AC,EMG and DFT, receive the better ECG waveform.
  • According to the working mode class, this device belongs to continuous operation equipment

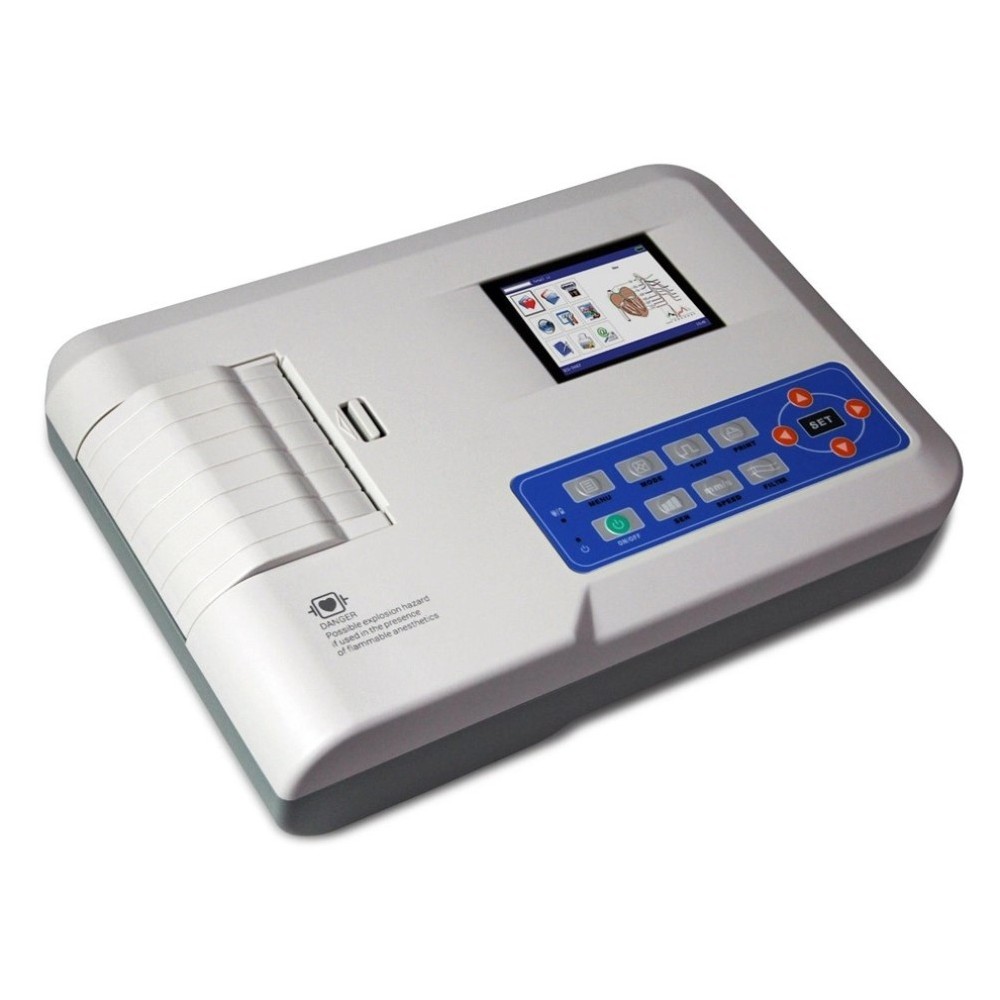

CMS 300G ECG Machine Three Channel

CMS 300G ECG Machine Three Channel
Product Details :

Specification:

  • Electrocardiograph 3.5" TFT Color LCD display shows the working status and ECG waveform.
  • Safety Type : lass I, Type CF applied part, which has defibrillation-proof applied part
  • Lead : Standard 12 leads
  • input way: Floating and defibrillation protection
  • Patient leak current <10µA
  • Sampling rate: 1000Hz
  • A/D conversion : 12bit
  • Frequency response : 0.05Hz~150Hz (-3dB, + 0.4dB)
  • time constant : >3.2s
  • CMRR : >60dB, >100dB( Add filter)
  • Noise level ?15µVp-p
  • EMG interference filter 25Hz/35Hz (-3dB)
  • AC filter :50Hz/60Hz (?20dB)
  • Recording way : Thermal printing system (8spots/mm)
  • Sensitivity 5mm/mV 10mm/mV 20mm/mV 40mm/mV Auto
  • Paper speed: Auto-mode: 25mm/s, 50mm/s, Rhythm-mode:25mm/s, 50mm/s, Manual-mode:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25&50mm/s
  • Power supply: AC: 220V, 50Hz (110V, 60 Hz) DC: 7.4V, 3700 mAh rechargeable lithium battery

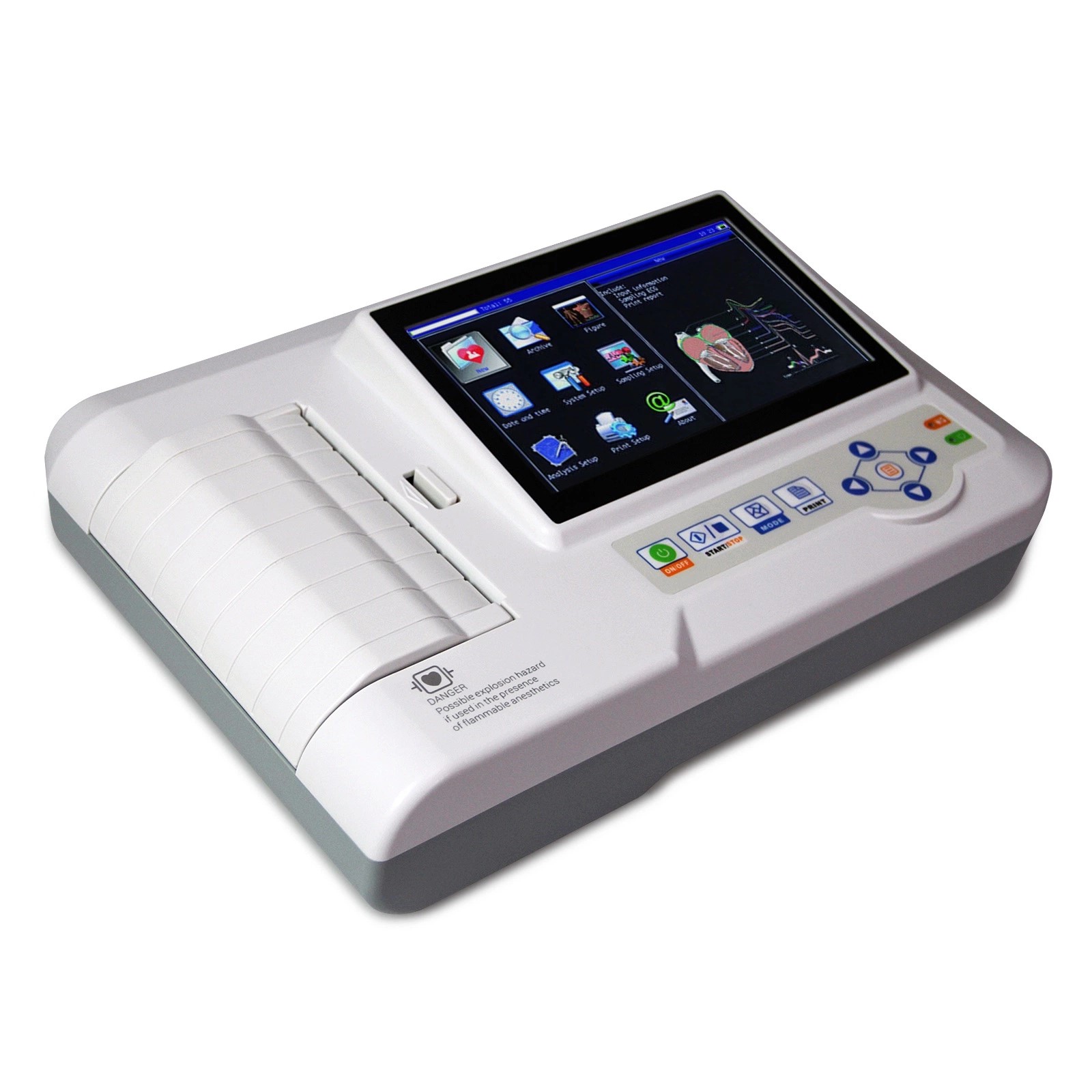

CMS 600G ECG Machine Six Channel

CMS 600G ECG Machine Six Channel
Product Details :

Specification:

  • Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
  • Real-time and continuously record the clear and accurate ECG waveform and annotation character (including lead mark, sensitivity, paper speed and filter state, etc.)
  • Full-digital filter design, anti-baseline drift, AC and EMG interference.
  • Adjust the baseline automatically, optimize the print setting and optional rhythm leads.
  • In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
  • Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
  • With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor's burden and improves work efficiency.
  • Sync collection for 12-lead ECG, multiply printing formats, including 2x6+1(rhythm lead), 2x6, 3x4, 3x4+1(rhythm lead), 4x3, 4x3+1(rhythm lead), 6x2, 6x2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
  • Display of 3/6/12-lead ECG, "Lead off" and "Lack of paper" on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.
  • Time print can be set to every 1/2/3/5/10/20/30/60 minutes.
  • Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), "Save no print"(only save case but not print waveform).
  • AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in appointed time.
  • Store more than 1000 cases, convenient for case review and statistic.
  • Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakhstan, Russian and Ukrainian) interface and report.

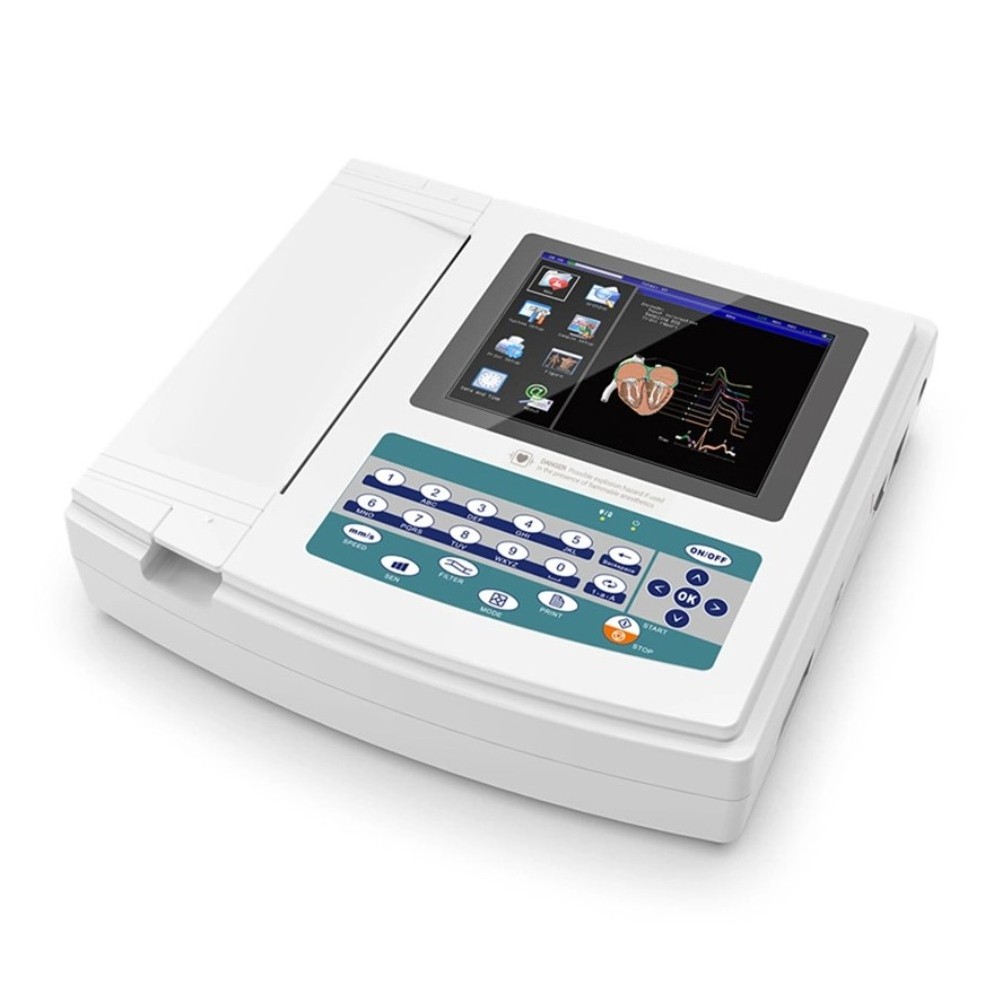

CMS 1200G ECG Machine Twelve Channel

CMS 1200G ECG Machine Twelve Channel
Product Details :

Specification:

  • Lead: Standard 12 leads
  • Patient leak current: <10uA
  • Input impedance: >=50M
  • Frequency response: 0.05 ~ 150Hz(-3dB)
  • Time constant: >3.2S
  • CMRR: >100dB
  • Dimention of recording paper: 80mmx20m
  • Paper speed: 25mm/s, 50mm/s
  • Sensitivity choice: 5, 10, 20mm/mV.
  • Measurement parameters: HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
  • 8" TFT display 800x600 pixels. LED backlight
  • Simultaneous 12 leads acquisition and display
  • Digital signal process technique, AC filter, baseline filter, EMG filteretc.
  • Auto-analysis and auto-interpretation
  • Multi-language options: Germany, France, Italian, Turkey, etc
  • Built-in lithium rechargeable battery,
  • USB and LAN socket for uploading data to PC
  • Memory: Built-in flash memory. Store more than 1000 pieces of archive
  • Product safety type: Class I, CF. Defibrillation and pacing protection
  • Enduring polarization voltage: ± 300mv
  • Nosie level: <15uVp-p
  • Dimension: 340mm(L) x 320mm(W) x 80mm(H)
