CMS600G ECG Machine Six Channel

IndoSurgicals Private Limited is a distinguished name in the medical equipment industry, recognized as one of the largest and most trusted suppliers and dealers in India. We are proud to introduce the CMS 600G ECG Machine Six Channel, a state-of-the-art electrocardiograph designed to provide superior performance and reliability. As a leading supplier in Delhi, India, we ensure that our products are of the best quality and cater to the needs of healthcare professionals, students, nurses, and medical institutions globally.

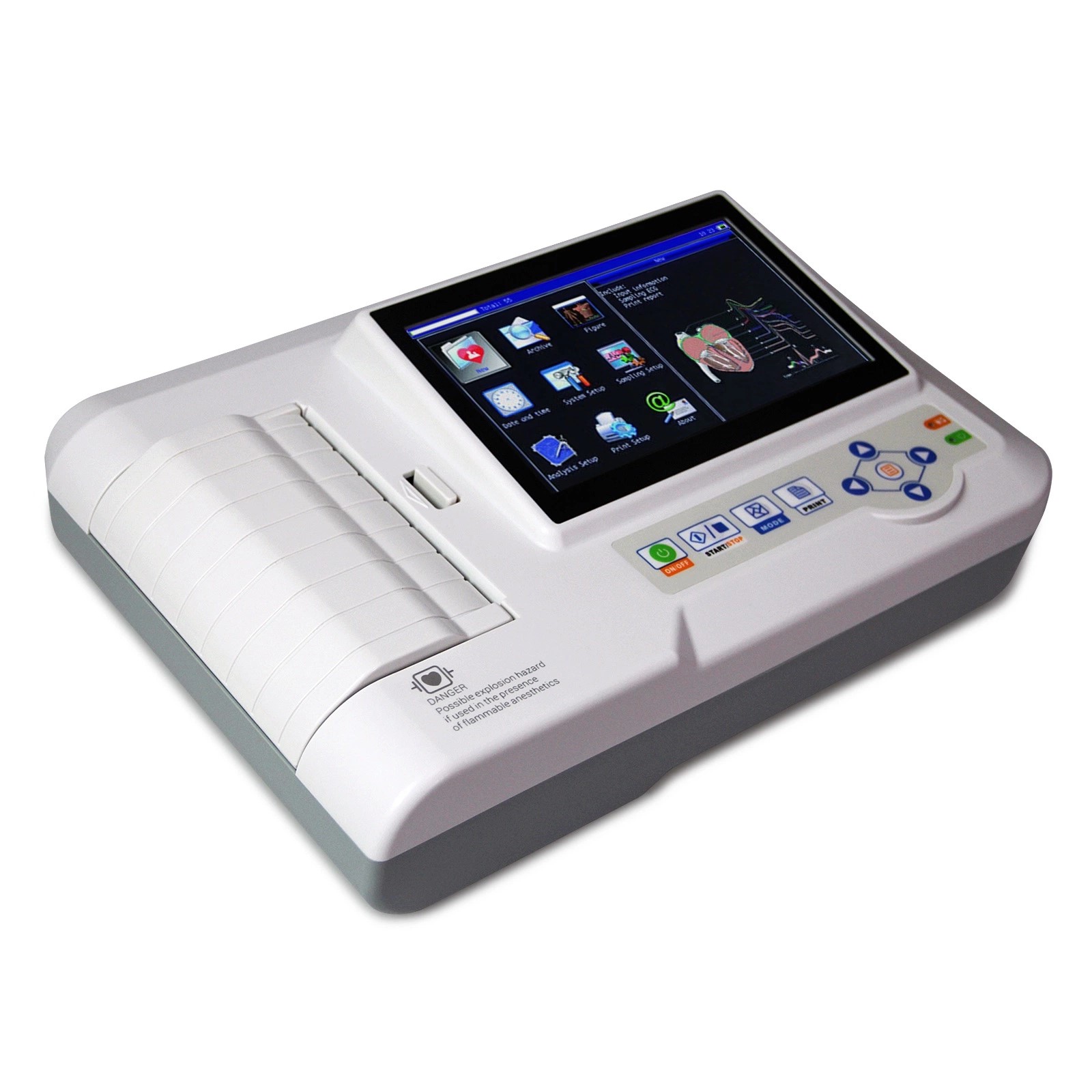

The CMS 600G ECG Machine is an advanced six-channel electrocardiograph that samples 12-lead ECG signals simultaneously and prints the waveform using a high-resolution thermal printing system. This device is perfect for use in surgery centers, hospitals, clinics, and educational settings. Its ability to operate in both AUTO and Manual modes makes it versatile and user-friendly, allowing for efficient recording and displaying of ECG waveforms. The machine also features automatic measurement and diagnosis of ECG waveform parameters, which significantly enhances the accuracy and efficiency of medical diagnostics.

One of the most notable features of the CMS 600G is its digital signal processing technology. This technology ensures that the ECG waveforms are of the highest quality by utilizing power frequency filters, baseline filters, and EMG filters. The device also provides real-time continuous recording of clear and accurate ECG waveforms, complete with annotations for lead marks, sensitivity, paper speed, and filter state. Additionally, the machine includes an intuitive multi-language interface, supporting languages such as Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, and Ukrainian, making it accessible to a broad range of users worldwide.

Product Specifications:

• Digital Signal Processing: Ensures high-quality ECG waveform via power frequency, baseline, and EMG filters.
• High-Resolution Thermal Printing: 8 dot/mm system for clear and precise recordings.
• Recording Frequency: Up to 150Hz.
• User-Friendly Interface: Supports multiple languages for global accessibility.
• AUTO/Manual Mode: Enhances operational efficiency and ease of use.
• Battery Life: Built-in rechargeable lithium battery with auto-protection circuit.
• Recording Capacity: Can store over 1000 cases for convenient case review and statistics.
• Performance:
  • Input mode: Floating and defibrillation protection
  • Frequency response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
  • CMRR: >60dB, >100dB (with filter)
  • Time constant: ≥ 3.2s
  • Patient leak current: <10µA
  • Calibration voltage: 1mV
  • Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
  • Noise level: <15µVp-p
  • Input circuit current: ≤50nA
  • Input impedance: ≥50MΩ
  • Sampling accuracy: 12-bit
  • Safety classification: Class I, type CF, and defibrillation-proof applied part
  • Recording mode: Thermal printing system
  • Paper size: 110mm (W) × 20m (L)
  • Sampling frequency: 1000Hz
  • EMG interference filter: 25Hz/35Hz (-3dB)
  • Power frequency filter: AC 50Hz/60Hz (-20dB)
  • Paper speed: Auto, Rhythm, Manual modes: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%

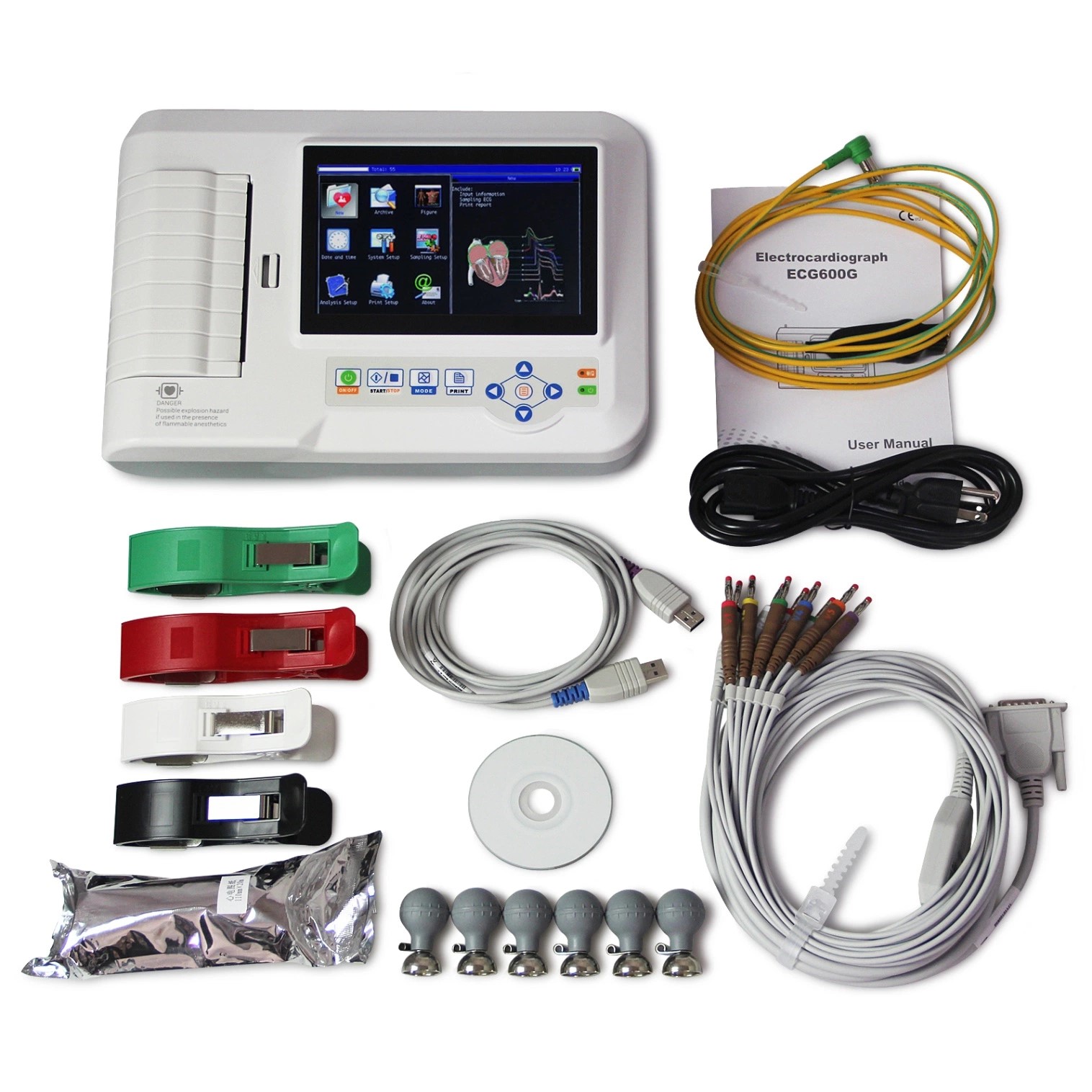

Accessories:

• A lead cable
• A limb electrode
• A chest electrode
• A thermal recording paper
• A power cord
• An earth wire
• A user manual (GB only, other languages on request)

Physical Characteristics:

• Dimensions: 315mm (L) × 215mm (W) × 92mm (H)
• Weight: 1.7Kg

Features:

• Color TFT Display: Shows 3/6/12-lead ECG waveform and work state on screen for easy diagnosis.
• Digital Filters: Synchronously collects up to 12-lead ECG signal with baseline, AC, and EMG filters for high-quality ECGs.
• Auto and Manual Modes: Multiple auto-print modes and flexible manual print modes to meet different requirements.
• Auto-Analysis and Diagnosis: Provides automatic measurement and diagnosis of routine ECG parameters such as HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), and R(V5)+S(V1).
• Power Options: AC and DC options with a built-in rechargeable lithium battery for up to 10 hours of continuous work, printing up to 3 hours, and recording up to 190 ECGs.
• Memory Storage: Can store up to 1000 cases for easy review and statistical analysis.
• Multi-Language Support: Interface and reports available in 13 languages, meeting diverse user requirements.

IndoSurgicals Private Limited is dedicated to delivering best quality medical equipment and ensuring customer satisfaction. Our CMS 600G ECG Machine is extensively used in surgery centers, hospitals, clinics, and educational institutions across the globe. As a trusted supplier in India, we provide top-notch medical devices to healthcare providers worldwide, enhancing their diagnostic capabilities and operational efficiency. Experience the precision and reliability of the CMS 600G ECG Machine and elevate your medical practice with our superior equipment.
