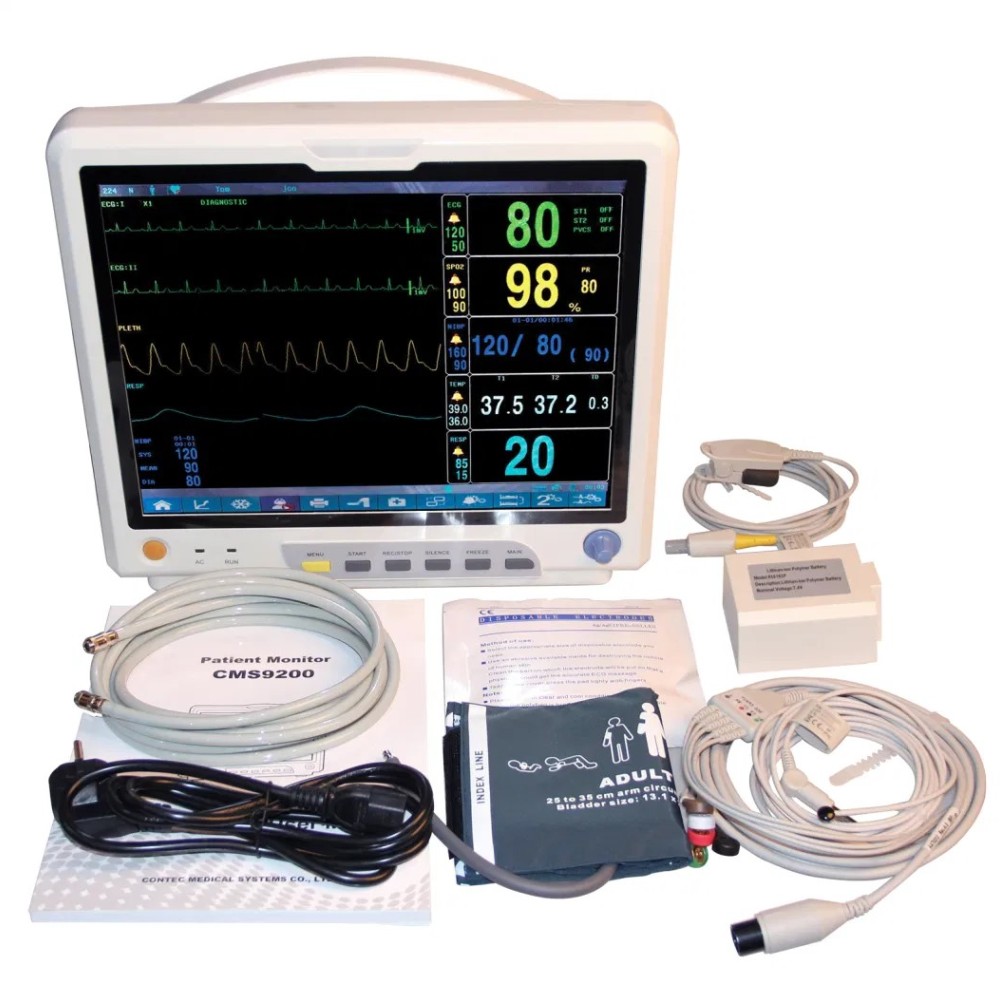

CMS9200 Patient Monitor
A large-screen multi-parameter patient monitor designed for continuous monitoring of adult, pediatric and neonatal patients. The CMS9200 combines ECG, respiration, SpO₂, pulse rate, non-invasive blood pressure and dual-channel temperature monitoring on a 15-inch high-resolution colour TFT display, with multi-waveform viewing, alarm review, network connectivity, trend analysis and rechargeable battery operation.
Comprehensive Vital-Signs Monitoring on a 15-Inch Display
The CMS9200 integrates parameter-measurement modules, display functions and optional recording capability into one bedside monitoring platform. It is intended for supervised hospital and clinical environments where continuous monitoring of multiple vital signs is required.
ECG Monitoring
Heart rate, ECG waveform, arrhythmia and ST-segment analysis using 3-lead or 5-lead configurations.
Respiration
Respiration rate and waveform monitoring using R-F (RA-LL) impedance measurement.
SpO₂ & Pulse Rate
Oxygen saturation, plethysmogram waveform, pulse rate and bar-graph display.
NIBP
Systolic, diastolic and mean non-invasive blood-pressure monitoring for adult, pediatric and neonatal patients.
Dual-Channel Temperature
Two temperature channels with T1, T2 and temperature-difference display.
Optional Expansion
Printer, EtCO₂ and dual-channel IBP are listed as optional configurations.

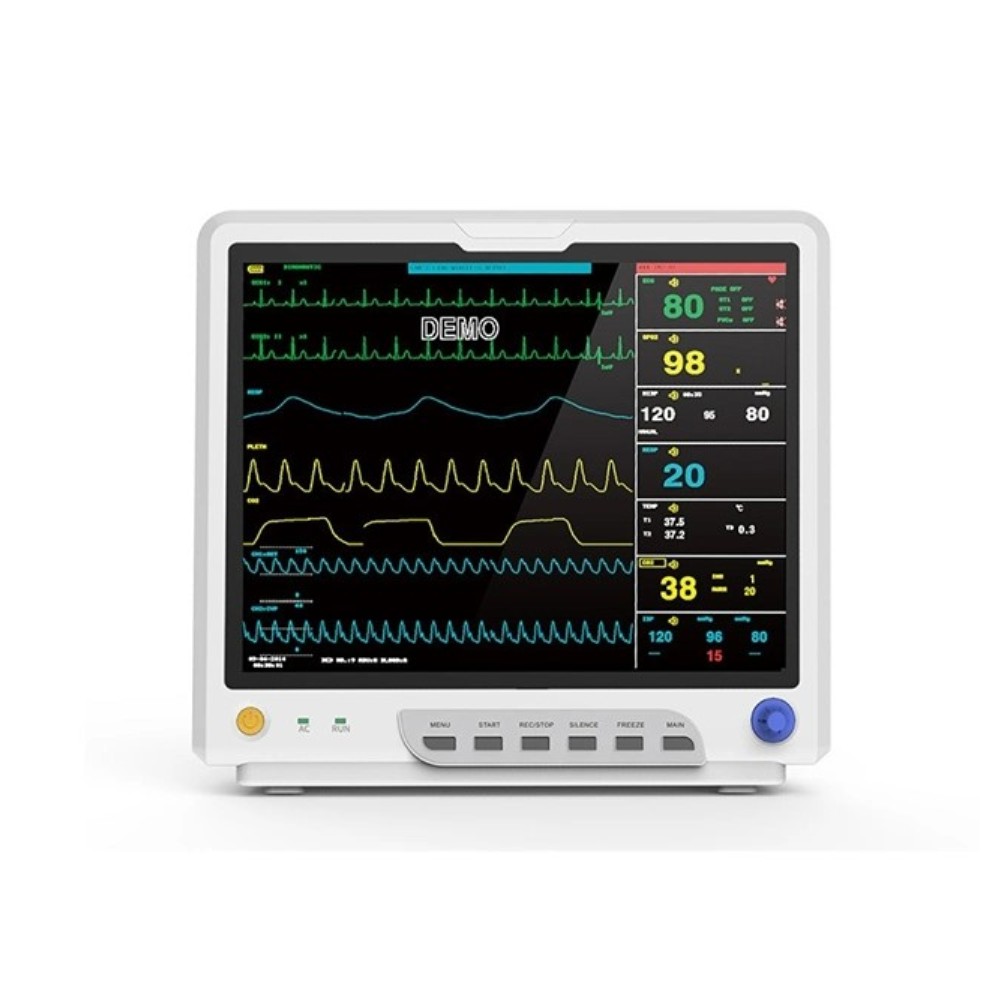

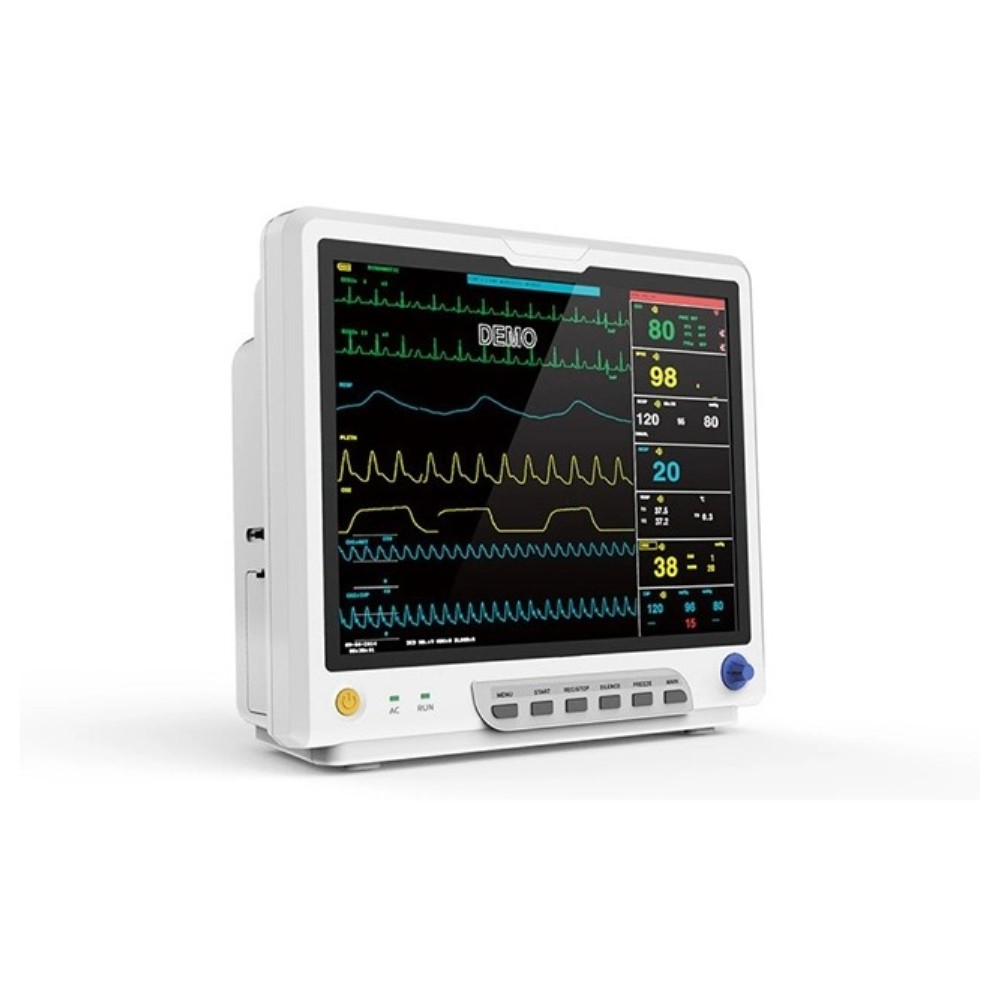

15-Inch High-Resolution Monitoring Display
8-Channel Waveform Display
Up to eight waveform channels can be displayed simultaneously on one screen.
7-Lead ECG View
Supports full-lead ECG presentation with seven ECG leads displayed together on one screen.
Customizable Colours
Waveform and parameter colours can be configured according to user preference.
Customizable Layout
Waveform positions and parameter selections can be adjusted for preferred bedside viewing.
Multi-Language Interface
Chinese and English are listed, with additional language options available.
Large-Screen Bedside Use
The 15-inch display is suited to environments where clear simultaneous presentation of multiple parameters is preferred.
Multi-Level Audible and Visual Alarm Support
| Alarm Categories | Technical alarms, 71 physiological alarms and 60 arrhythmia alarms |
|---|---|
| Prompt Modes | Visible, audible and character alarms |
| Alarm Levels | Three alarm levels |
Extended Trend, BP and ECG Waveform Review
The supplied description contains conflicting storage figures. One feature section states 72-hour trend data and 400 NIBP records, while the later Trend Review section states 480-hour trend review and 2,400 BP data groups. These values are therefore presented as source-reported figures rather than silently reconciled.
Feature-Section Figures
72-hour trend data, 40-second holographic waveform review and up to 400 NIBP data points are stated earlier in the source.
Trend-Review Figures
480-hour trend review, 2,400 BP data groups and 72-hour ECG waveform review are stated in the later technical section.
Central-Monitor Connectivity via Wired, Wi-Fi and 3G Modes
| Network Modes | Wired, Wi-Fi and 3G |
|---|---|
| Central Monitoring | Connects to a central monitor system through LAN or WAN |
| View Bed | Supports observation of other beds within a compatible monitoring network |
| Software Updates | Network and U-disk updating |
Electrical and Ingress Protection
| Type of Protection | Class I |
|---|---|
| Electroshock Protection | Type CF defibrillation-proof applied part |
| Ingress Protection | IPX0 |
| High-Frequency Surgical Unit Protection | Supported as stated in the supplied description |
| Defibrillation Protection | Defibrillation-proof when used with the specified special leads |
Operating and Storage Conditions
| Working Temperature | 5–40°C |
|---|---|
| Storage Temperature | −40 to +55°C |
| Working Humidity | 30–75% |
| Storage Humidity | ≤95%, no condensation |
AC Operation with Rechargeable Replaceable Battery
| Power Supply | AC 100–240 V, 50/60 Hz |
|---|---|
| Maximum Input Power | 150 VA |
| Battery | Built-in rechargeable battery; source also describes it as replaceable |
| Battery Working Time | Approximately 90 minutes |
ECG Monitoring Specifications
| Lead Mode | 3-lead or 5-lead |
|---|---|
| Lead Selection | I, II, III, aVR, aVF, aVL, V |
| Gain | ×0.25, ×0.5, ×1, ×2 |
| Scan Speed | 12.5, 25 or 50 mm/s |
| Adult HR Range | 15–300 bpm |
| Pediatric / Neonatal HR Range | 15–350 bpm |
| ST Monitoring Range | −2.0 mV to +2.0 mV |
| ST Accuracy | ±0.04 mV or ±10% |
| Arrhythmia Analysis | 13 types |
Respiration Monitoring Specifications
| Method | R-F (RA-LL) impedance |
|---|---|
| Respiration Rate Range | 0–120 rpm |
| Accuracy | ±2 rpm |
| Apnea Alarm | 10–40 seconds |
| Scan Speed | 6.25, 12.5 or 25 mm/s |
Patient-Specific Non-Invasive Blood Pressure Ranges
| Method | Oscillometry |
|---|---|
| Adult Range | SYS 40–270 mmHg; DIA 10–215 mmHg; MEAN 20–235 mmHg |
| Pediatric Range | SYS 40–200 mmHg; DIA 10–150 mmHg; MEAN 20–165 mmHg |
| Neonatal Range | SYS 40–135 mmHg; DIA 10–100 mmHg; MEAN 20–110 mmHg |
| Accuracy | ±5 mmHg; maximum standard deviation 8 mmHg |
| Adult Over-Pressure Protection | 297±3 mmHg |
| Pediatric Over-Pressure Protection | 240±3 mmHg |
| Neonatal Over-Pressure Protection | 147±3 mmHg |
Dual-Channel Temperature Specifications
| Channels | Dual-channel |
|---|---|
| Measurement Range | 0–50°C |
| Accuracy | 0.1°C |
| Resolution | 0.1°C |
| Updating Time | Approximately 1 second |
Oxygen Saturation and Pulse-Rate Specifications
| Measurement Range | 0–100% |
|---|---|
| Accuracy | 70–100%: ±2%; 0–69%: unspecified |
| Pulse-Rate Range | 0–250 bpm |
| Pulse-Rate Accuracy | ±2 bpm or ±2%, whichever is greater |
| Technology | Digital SpO₂ with anti-interference and weak-perfusion capability |
Thermal Recording Specifications
The printer is listed as an optional feature in the supplied description.
| Waveforms | 2-channel |
|---|---|
| Print Width | 48 mm |
| Paper Speed | 25 or 50 mm/s |
End-Tidal CO₂ Monitoring Specifications
| Method | Sidestream or mainstream |
|---|---|
| CO₂ Range | 0–150 mmHg |
| Resolution | 0.1 mmHg from 0–69 mmHg; 0.25 mmHg from 70–150 mmHg |
| Accuracy | 0–40: ±2 mmHg; 41–70: ±5%; 71–100: ±8%; 101–150: ±10% |
| Respiration Rate >80 bpm | ±12% |
| AwRR Range | 0–150 rpm |
| Apnea Alarm | Yes |
Invasive Blood Pressure Specifications
| Channels | Dual-channel |
|---|---|
| Labels | ART, PA, CVP, RAP, LAP, ICP, P1, P2 |
| Measurement Range | −10 to 300 mmHg |
| Resolution | 1 mmHg |
| Accuracy | ±2% or 1 mmHg, whichever is greater |
