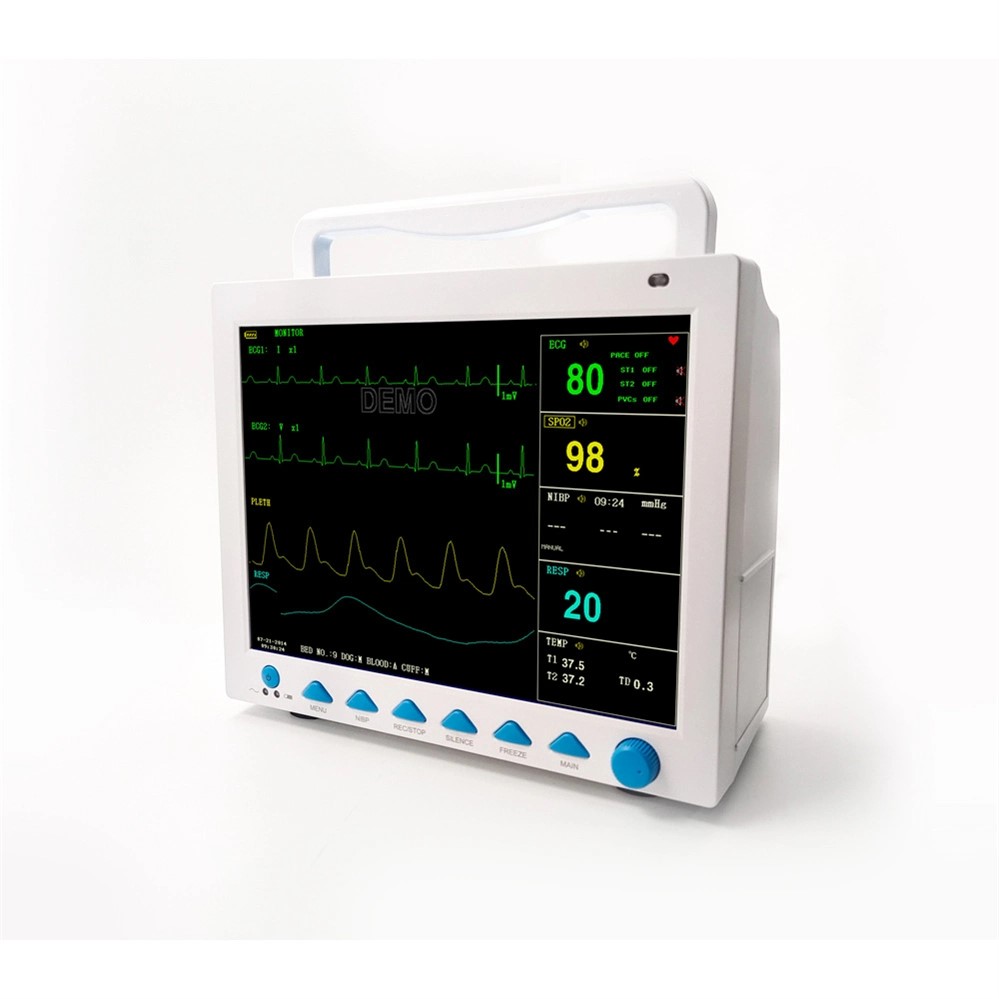

CMS8000 Multi Parameter Patient Monitor
A multi-parameter bedside monitor designed for continuous monitoring of adult, pediatric and neonatal patients. The CMS8000 combines ECG, respiration, SpO₂, pulse rate, non-invasive blood pressure and dual-channel temperature monitoring on a 12-inch high-resolution colour TFT display, with extended trend storage, waveform review, networking, SD/USB data storage and rechargeable battery operation.
Comprehensive Multi-Parameter Monitoring for Bedside Care
The CMS8000 is intended for continuous observation of vital signs in hospitals, surgery centres, clinics and other supervised healthcare environments. Standard parameters include ECG, SpO₂, non-invasive blood pressure, respiration, dual-channel temperature and pulse rate, with optional modules available for expanded monitoring.
ECG Monitoring
3-lead and 5-lead ECG options with heart-rate monitoring, selectable leads and multi-lead waveform display.
Respiration
Impedance-based respiration monitoring with adult, pediatric and neonatal measurement ranges.
SpO₂ & Pulse Rate
Digital SpO₂ technology with anti-interference and weak-perfusion capability, plus pulse-rate monitoring.
Non-Invasive Blood Pressure
Oscillometric NIBP monitoring with Manual, Auto and Continuous modes and dual over-pressure protection.
Dual-Channel Temperature
Two temperature channels with 0.1°C resolution and error display.
Optional Expansion
2-IBP, EtCO₂, recorder, VGA output, 12-channel ECG, trolley and central-monitor configurations are listed as optional.

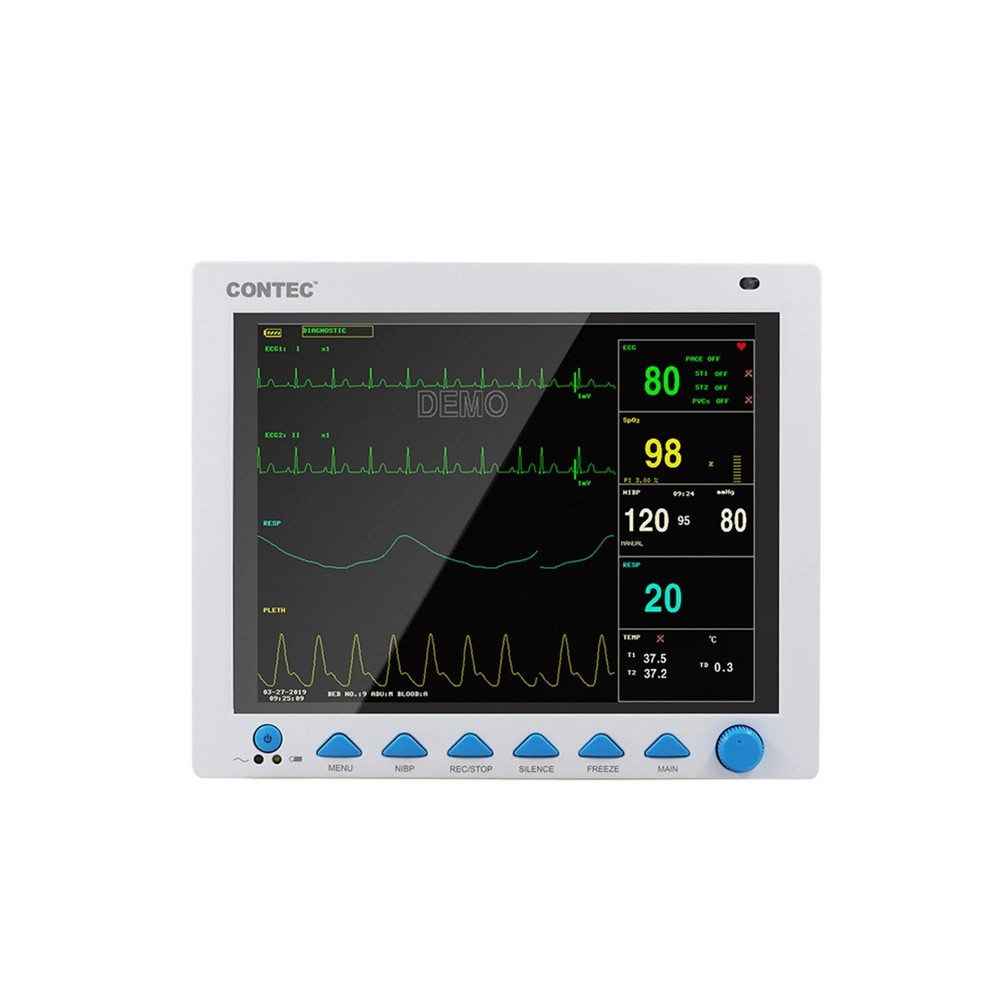

12-Inch High-Resolution Monitoring Display
The monitor uses a 12-inch colour TFT LCD with multiple viewing modes, including a large-character interface. The supplied description states that seven ECG leads can be displayed on one screen, with ECG waveforms shown in series.
Large-Character Interface
Provides a large-number display mode for easier bedside viewing of key values.
7-Lead ECG Display
Supports simultaneous display of seven ECG leads on one screen as stated in the supplied specification.
Adjustable LCD Backlight
Backlight level can be adjusted to suit the viewing environment.
VGA Output
VGA video output is listed as an available configuration option.
Operation Modes
Monitoring, surgery and diagnosis operating modes are listed in the supplied specification.
Human-Voice Alarm
The source describes a human-voice alarm function in addition to standard alarm capability.
Extended Trend, Waveform and Record Storage
480-Hour Trend Data
Stores up to 480 hours of trend information for retrospective review.
40-Second Holographic Waveforms
Supports review of 40-second holographic waveform records.
400 NIBP Records
Stores up to 400 non-invasive blood-pressure data points.
SD Card Storage
Built-in SD-card support is listed for data storage.
USB Disk Support
USB storage can be used for data handling and software updates.
Drug Calculation
Includes drug-concentration calculation and titration-table functions.
Central Monitoring and Bed-to-Bed Observation
The supplied specification states that the CMS8000 can connect to a central monitoring station, support observation of other beds and receive software updates through wireless and wired communication modes.
Central Monitoring
Designed for integration with a compatible central monitoring system where configured.
Wireless & Wired Modes
Wireless and wired networking modes are listed for central monitoring and software-update support.
Standard Monitoring Configuration
| ECG | Standard ECG monitoring; 3-lead and 5-lead modes specified |
|---|---|
| SpO₂ | Digital oxygen-saturation monitoring |
| NIBP | Non-invasive blood pressure monitoring |
| RESP | Respiration monitoring |
| TEMP | Dual-channel temperature monitoring |
| PR | Pulse-rate monitoring |
ECG Monitoring Specifications
| Lead Mode | 3-lead and 5-lead |
|---|---|
| Lead Selection | I, II, III, aVR, aVL, aVF, V |
| Heart-Rate Range | 15–300 bpm |
| ST Measurement / Alarm Range | −0.6 mV to +0.8 mV |
| ECG Scan Speed | 12.5, 25 or 50 mm/s |
| Arrhythmia Analysis | Automatic arrhythmia-waveform analysis listed |
Respiration Monitoring Specifications
| Method | R-F (RA-LL) impedance |
|---|---|
| Adult Range | 0–120 rpm |
| Pediatric / Neonatal Range | 0–150 rpm |
| Apnea Alarm | 10–40 seconds |
Oxygen Saturation and Pulse-Rate Specifications
| SpO₂ Range | 0–100% |
|---|---|
| SpO₂ Accuracy | 70–100%: ±2%; 0–69%: unspecified |
| Pulse-Rate Range | 0–250 bpm |

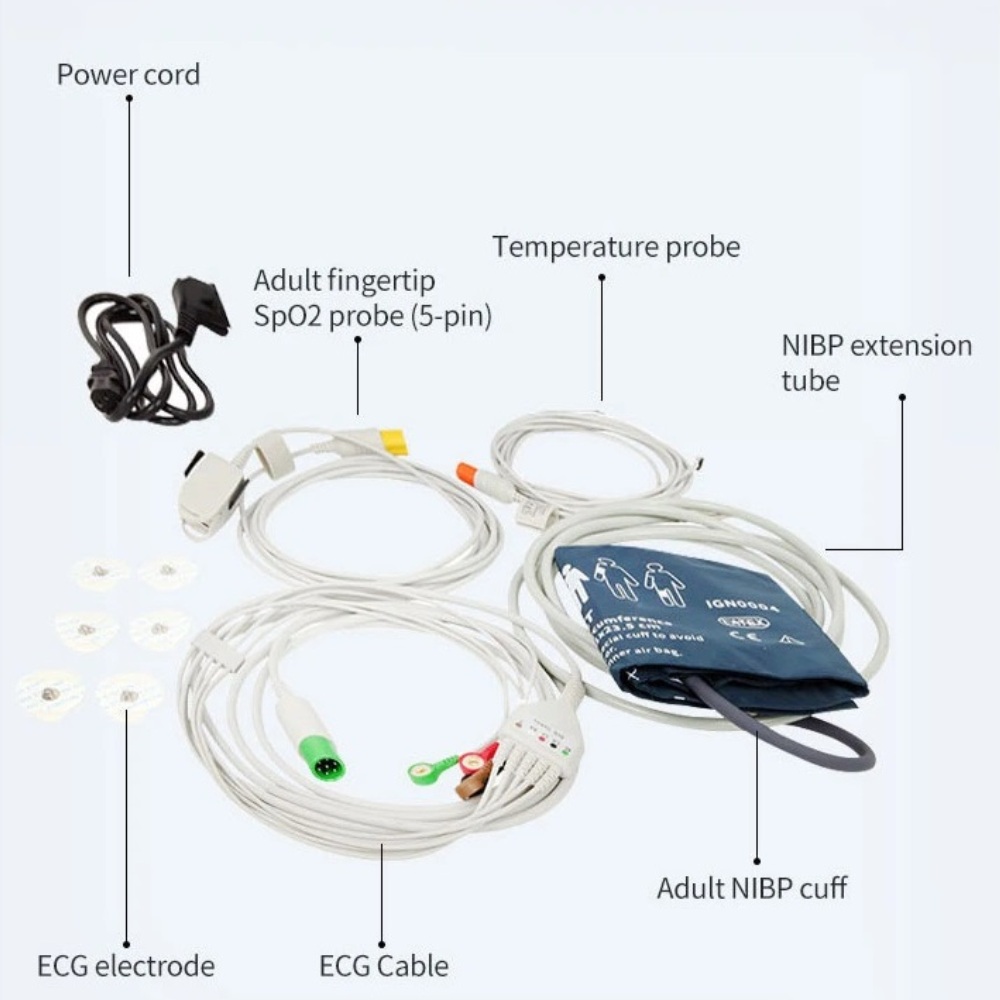

| Probe Options | Adult, pediatric and neonatal probes available |
Non-Invasive Blood Pressure Specifications
| Method | Oscillometry |
|---|---|
| Modes | Manual, Auto, Continuous |
| Measurement Range | 10–270 mmHg |
| Over-Pressure Protection | Dual protection using software and hardware |
| Cuff Options | Adult, pediatric and neonatal cuffs available |
| Stored NIBP Data | Up to 400 data points |
Dual-Channel Temperature Specifications
| Channels | Dual-channel |
|---|---|
| Range | 0–50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.1°C |
| Additional Function | Temperature error display |
End-Tidal CO₂ Monitoring Specifications
EtCO₂ is listed as an optional monitoring configuration.
| Method | Sidestream or mainstream |
|---|---|
| CO₂ Range | 0–150 mmHg |
| Resolution | 0.1 mmHg from 0–69 mmHg; 0.25 mmHg from 70–150 mmHg |
| Accuracy | 0–40: ±2 mmHg; 41–70: ±5%; 71–100: ±8%; 101–150: ±10% |
| Respiration-Rate Range | 2–150 rpm |
| Respiration-Rate Accuracy | ±1 bpm |
| Apnea Alarm | Available |
Invasive Blood Pressure Specifications
Dual-channel IBP is listed as an optional monitoring configuration.
| Channels | Dual-channel |
|---|---|
| Labels | ART, PA, CVP, RAP, LAP, ICP, P1, P2 |
| Range | −50 to 350 mmHg |
| Resolution | 1 mmHg |
| Accuracy | ±2% or 1 mmHg, whichever is greater |
Thermal Recorder Specifications
The source contains conflicting printer wording: one feature calls the thermal printer built-in, while the introduction and recorder section describe it as optional. This rebuilt description treats the recorder as optional.
| Print Mode | Thermal array |
|---|---|
| Recording Width | 48 mm |
| Paper Speed | 25 or 50 mm/s |
| Printing Waveforms | Dual-channel |
Expandable Monitoring and System Options
The following items are listed as optional in the supplied description.
2-IBP
Dual-channel invasive blood-pressure monitoring.
EtCO₂
Sidestream or mainstream end-tidal carbon-dioxide monitoring.
Thermal Recorder
Optional thermal recording configuration with 48 mm recording width.
VGA
Optional VGA video-output configuration.
12-Channel ECG
Optional 12-channel ECG configuration.
Trolley / Central Monitor
Optional trolley and central-monitor-system configurations.

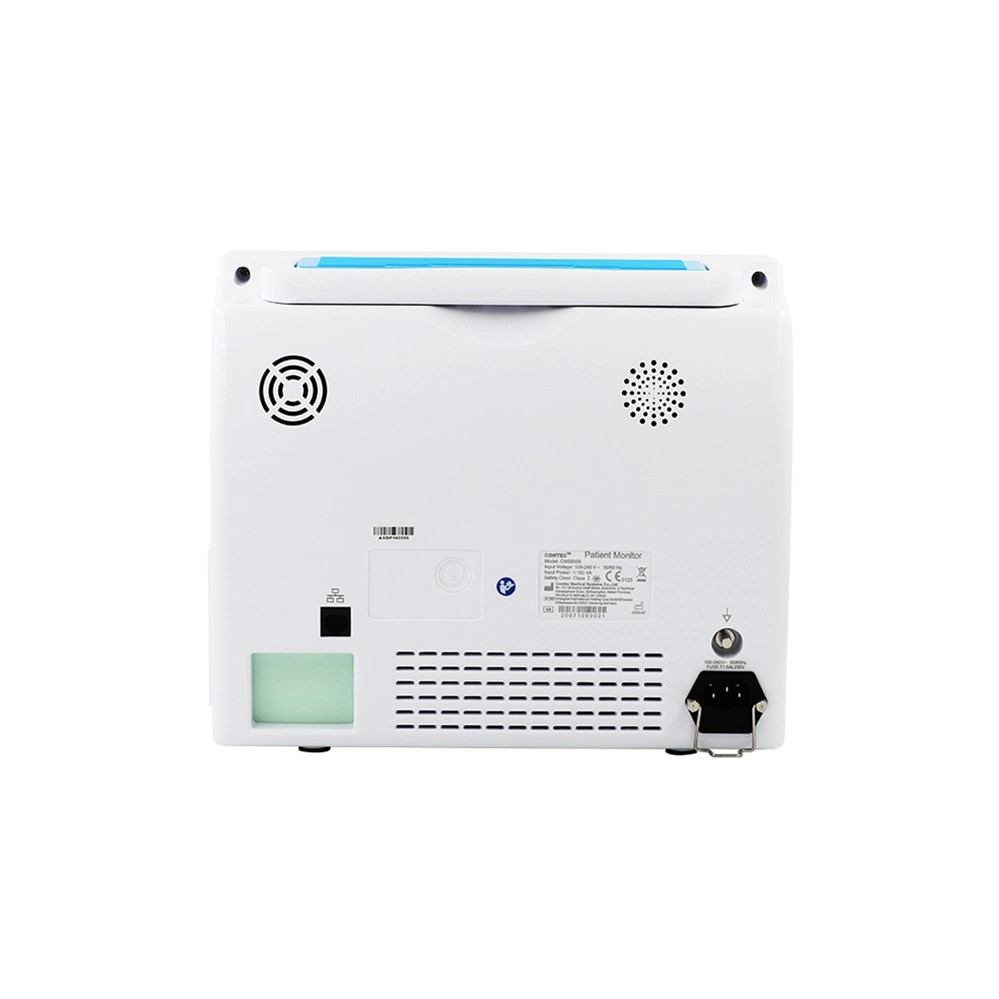

Power Supply and Protection Features
| Power Requirement | AC 100–240 V, 50/60 Hz |
|---|---|
| Power Consumption | 150 VA |
| Battery | Built-in rechargeable lithium battery |
| High-Frequency Surgical Unit Protection | Supported as stated in the supplied specification |
| Defibrillation Protection | Defibrillation-proof when used with the specified special leads |
Bedside Monitor Dimensions and Weight
| Display | 12-inch colour TFT LCD |
|---|---|
| Dimensions | 310 × 140 × 263 mm |
| Weight | Approximately 3.8 kg |
| Patient Categories | Adult, pediatric and neonatal |
Certifications Stated in the Supplied Description
The supplied product description states FDA certification in the United States and CE certification in Europe. These claims are reproduced here as source-provided information and have not been independently verified in this rewrite.
