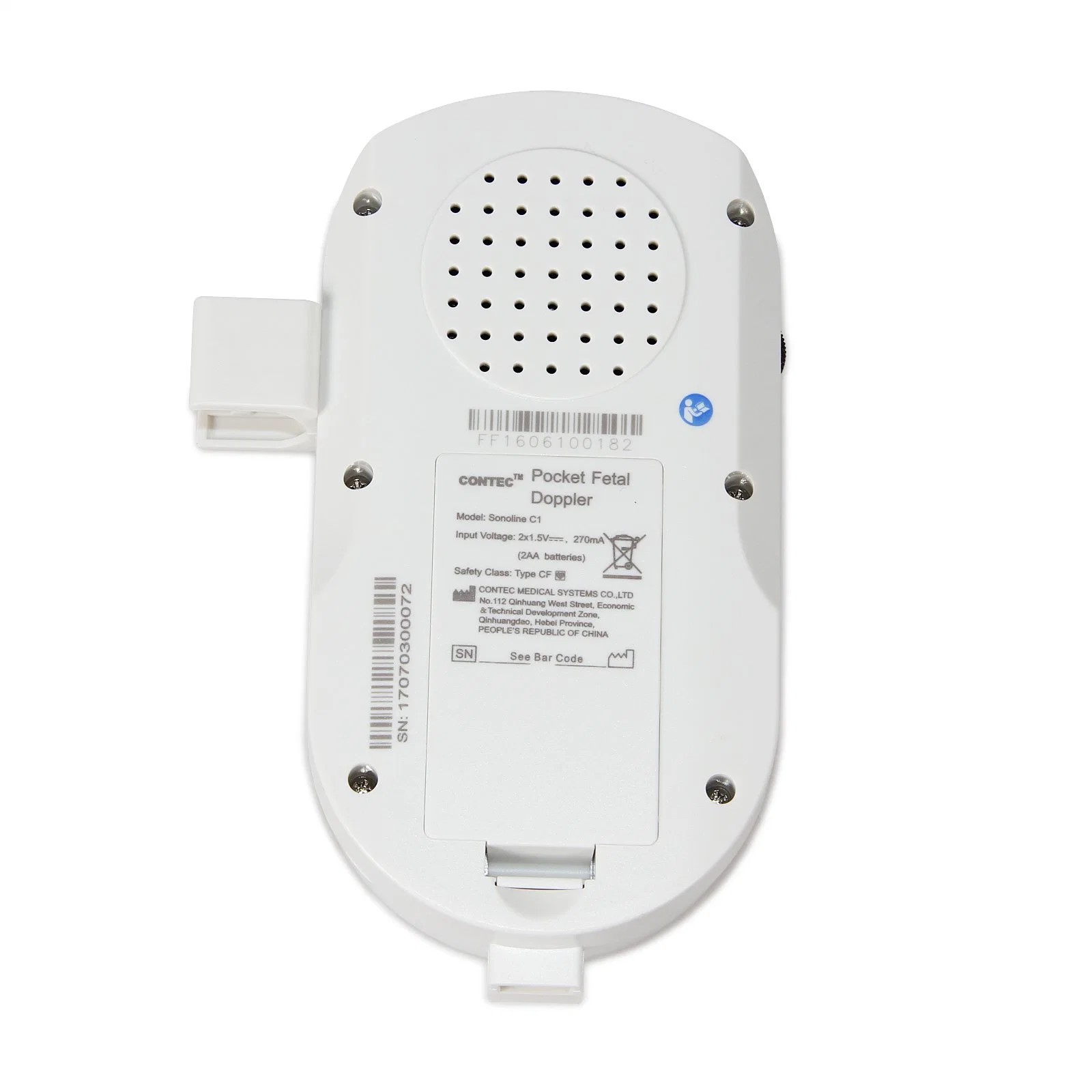

Pocket Fetal Doppler

IndoSurgicals Private Limited is proud to be a leading name in the medical equipment industry, recognized as one of the largest and most trusted suppliers and dealers in India. Our Pocket Fetal Doppler is a top-quality device designed to provide expectant mothers and healthcare professionals with a reliable way to monitor fetal heart rates. As a prominent supplier in Delhi, India, we ensure our products are of the best quality and widely used in surgery centers, hospitals, clinics, and by students, nurses, and medical professionals worldwide.

The Pocket Fetal Doppler is an essential tool for prenatal care, allowing for the detection of fetal heart rates from the twelfth week of pregnancy. This compact and portable device is designed for both home and clinical use, making it convenient and accessible. With its built-in loudspeaker, connection for a recorder and earphone, and large backlit LCD display, it provides clear and accurate readings. The LCD measures 37mm x 23mm, ensuring visibility in all lighting conditions.

Product Use:

The Pocket Fetal Doppler is primarily used by expectant mothers, obstetricians, midwives, and other healthcare professionals to monitor fetal heart rates (FHR). It is a valuable tool in prenatal care for assessing fetal well-being and detecting potential issues early. This device is also used by students and nurses for training and educational purposes, making it an indispensable asset in various medical settings.

Product Specifications:

Features:

1. Delicate and Compact Design: The Pocket Fetal Doppler is portable and easy to use.
2. Ergonomic Probe Structure: The crooked probe design enhances comfort and ease of use, reflecting a humanized design approach.
3. Three Working Modes: Includes Real-time FHR Display Mode, Averaged FHR Display Mode, and Manual Mode.
4. Visual Indicators: Displays FHR values, bar graphs, and heartbeat waveforms in color.
5. Alarm System: Red alarm when FHR values are out of the normal range.
6. Additional Indicators: Probe fall-off detection and battery status indication.
7. Automatic Shutdown: The device turns off automatically if no signal is detected within 1 minute.
8. Audio Interface: Can be connected to other recording devices to record fetal heart sounds in real-time.
9. Long Battery Life: Two 1.5V AA batteries provide more than 8 hours of normal use.

Performance:

1. Safety Classification: Internally powered equipment, type CF applied part.
2. Display: 1.77" 262K TFT screen.
3. Fetal Heart Rate Range: 50 BPM ~ 240 BPM.
4. Resolution: 1 BPM.
5. Accuracy: ± 2 BPM.
6. Power Consumption: <1 W.
7. Operational Voltage: DC 3V.
8. Battery: Two 1.5V batteries (type: AA LR6).

Probe:

1. Nominal Frequency: 2.0 MHz.
2. Working Frequency: 2.0 MHz ± 10%.
3. Sensitivity: ≥90 dB.
4. Ultrasonic Output Power: P < 20 mW.
5. Negative Peak Sound Pressure: P_ < 1 MPa.
6. Output Beam Intensity: Iob < 20 mW/cm².
7. Spatial-peak Temporal-average Intensity: Ispta < 100 mW/cm².
8. Working Mode: Continuous wave Doppler.
9. Effective Radiating Area of Transducer: < 157 mm².

Accessories:

• User manual
• 2MHz crooked probe

Physical Characteristics:

• Dimensions: 135 mm (L) × 92 mm (W) × 29 mm (H).
• Weight: Approximately 245 g (with battery).

IndoSurgicals Private Limited is dedicated to delivering best quality medical equipment and ensuring customer satisfaction. Our Pocket Fetal Doppler is extensively used in surgery centers, hospitals, clinics, and by medical professionals worldwide. As a trusted supplier in India, we offer reliable and high-performing medical devices that enhance prenatal care and improve patient outcomes. Experience the precision and convenience of the Pocket Fetal Doppler and elevate your prenatal monitoring with our exceptional product.
