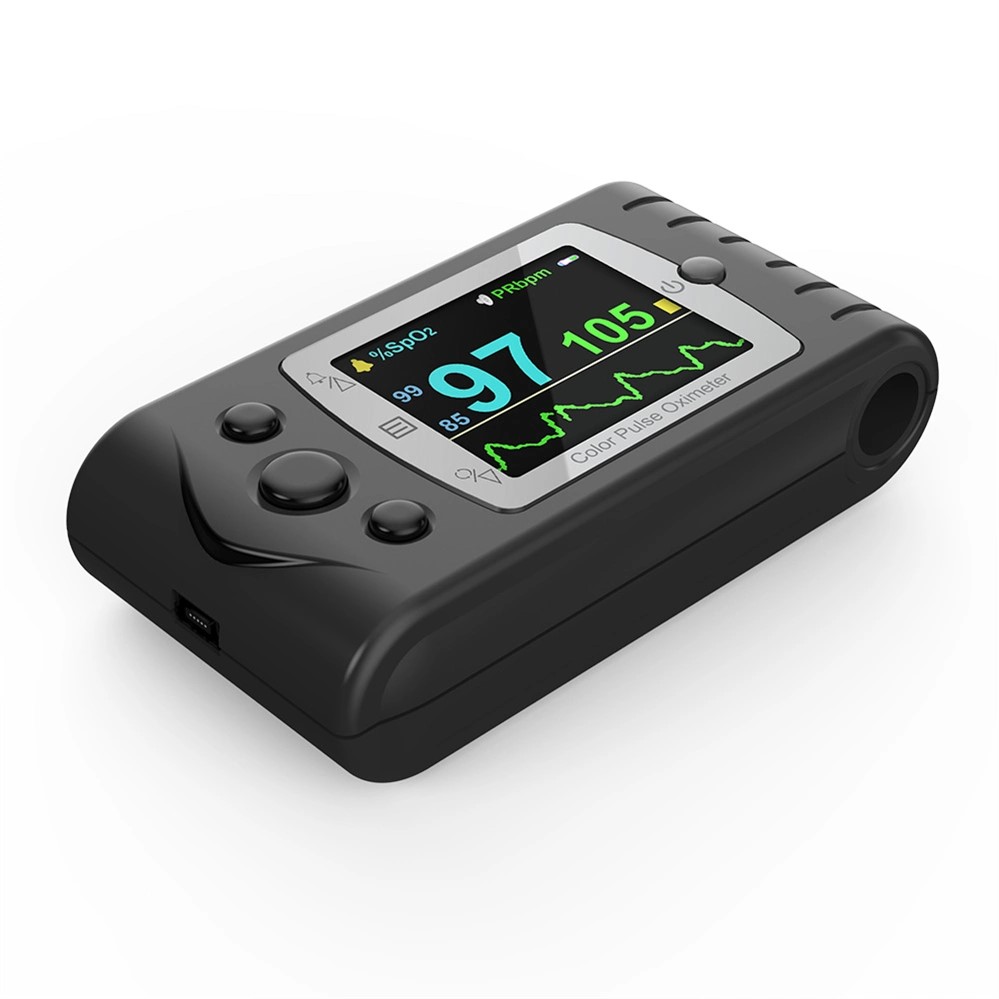

CMS 60C Handheld Finger Clip Pulse Oximeter
A compact handheld pulse oximeter designed for measurement and display of blood oxygen saturation (SpO₂) and pulse rate. The CMS 60C combines a 1.77-inch colour screen, pulse waveform display, adjustable alarm limits, rechargeable lithium-battery operation, data storage and computer connectivity in a lightweight portable format.
Portable Oxygen-Saturation and Pulse-Rate Monitoring
The CMS 60C is intended for spot-check and handheld monitoring of oxygen saturation and pulse rate in clinical, teaching and supervised monitoring environments. Its compact form, colour display and external SpO₂ probe make it suitable for portable use where a larger bedside monitor is not required.
SpO₂ Display
Displays measured oxygen-saturation values from 0-100% with 1% resolution.
Pulse-Rate Display
Displays pulse rate together with a bar graph and audible pulse indication.
Pulse Waveform
Provides a visual pulse waveform to support observation of the measured signal.
Adjustable Limits
Upper and lower prompt limits can be configured according to monitoring requirements.
Battery Status
Battery-capacity and low-voltage indications support timely recharging and continued operation.

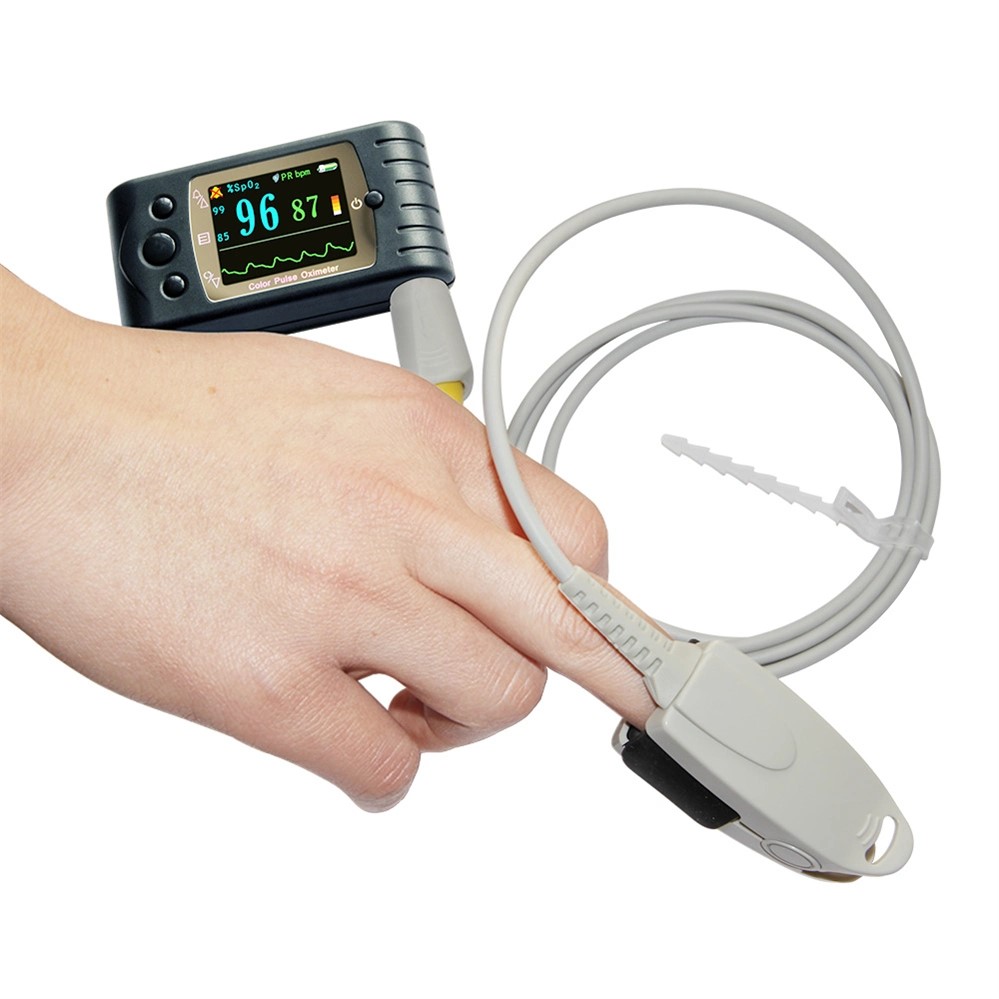

External SpO₂ Probe
Supplied with an external SpO₂ probe for patient measurement.
Compact Colour Display with Simple Menu Operation

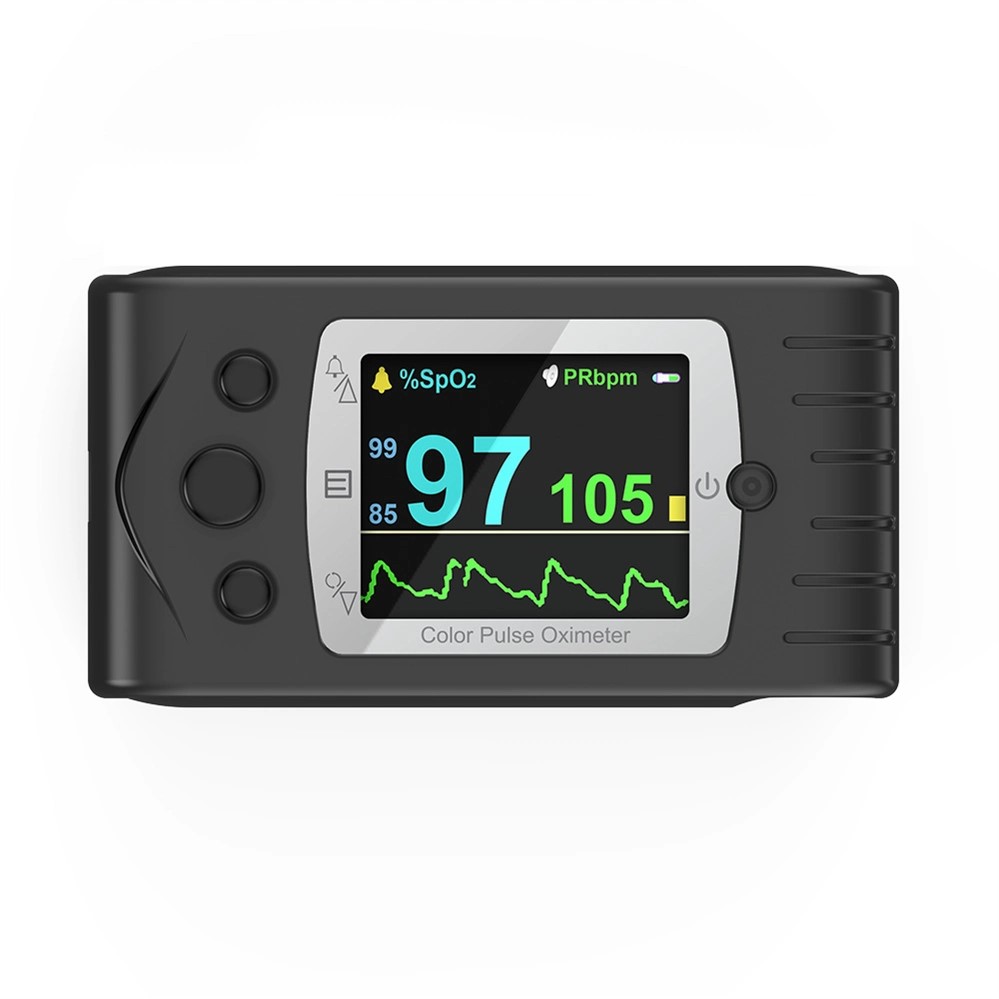

1.77-Inch Colour Screen
Compact colour display for SpO₂, pulse rate, waveform and device-status information.
128 × 160 Resolution
The supplied specification lists a screen resolution of 128 × 160 pixels.
Operation Menu
User menu provides access to function and prompt-limit settings.
Adjustable Brightness
Display brightness can be changed for different viewing conditions.
Pulse Sound
Audible pulse-rate indication provides an additional monitoring cue.
Overrun Prompt
Configured upper and lower limits can trigger a prompt when a measured value exceeds the set range.
Measurement Storage and Computer Transfer
Stored Data
The supplied description states that measurement data can be stored in the device and uploaded to a computer for review.
Real-Time Transmission
Real-time data transmission is also listed as a supported function when used with the appropriate connection and software.
Oxygen-Saturation Measurement Specifications
| Measurement Range | 0-100% |
|---|---|
| Resolution | 1% |
| Accuracy | 70-100%: ±2%; 0-69%: unspecified |
| Low-Perfusion Condition | Pulse-filling ratio 0.4% |
| Low-Perfusion SpO₂ Error | ±4% |
| Ambient-Light Deviation | ≤1% under the stated normal/ambient-light comparison condition |
Pulse-Rate Measurement Specifications
| Measurement Range | 30-250 bpm |
|---|---|
| Resolution | 1 bpm |
| Accuracy, 30-99 bpm | ±2 bpm |
| Accuracy, 100-250 bpm | ±2% |
| Low-Perfusion PR Error | ±2 bpm from 30-99 bpm; ±2% from 100-250 bpm |
Rechargeable Battery and Electrical Classification
| Working Voltage | DC 3.6-4.2 V |
|---|---|
| Power Consumption | ≤100 mA |
| Battery | One 3.7 V rechargeable lithium battery |
| Battery Cycle Life | No less than 500 charge/discharge cycles as stated in the supplied specification |
| Safety Type | Internally powered equipment, Type BF applied part |
Standard and Optional Accessories
Standard Accessories
- User manual - 1 pc
- Data line - 1 pc
- SpO₂ probe - 1 pc
Optional Accessories
- Power adapter
- Other compatible SpO₂ probes
Compact and Lightweight Handheld Format
| Display | 1.77-inch colour screen |
|---|---|
| Screen Resolution | 128 × 160 |
| Dimensions | 87 mm (L) × 45 mm (W) × 22 mm (H) |
| Weight | Approximately 68 g with one lithium battery |
Suitable for Clinical Monitoring and Medical Training
Doctors
For portable spot-check monitoring of oxygen saturation and pulse rate.
Nurses
For routine patient observation in supervised clinical environments.
Medical Technicians
For portable SpO₂ and pulse-rate measurement as part of patient monitoring workflows.
Medical Students
Useful for supervised training in pulse-oximetry measurement and patient-monitoring techniques.
Hospitals & Clinics
Suitable for wards, clinics, examination rooms and other supervised healthcare settings.
Community Healthcare
Portable format supports use in community healthcare settings where handheld monitoring is required.
