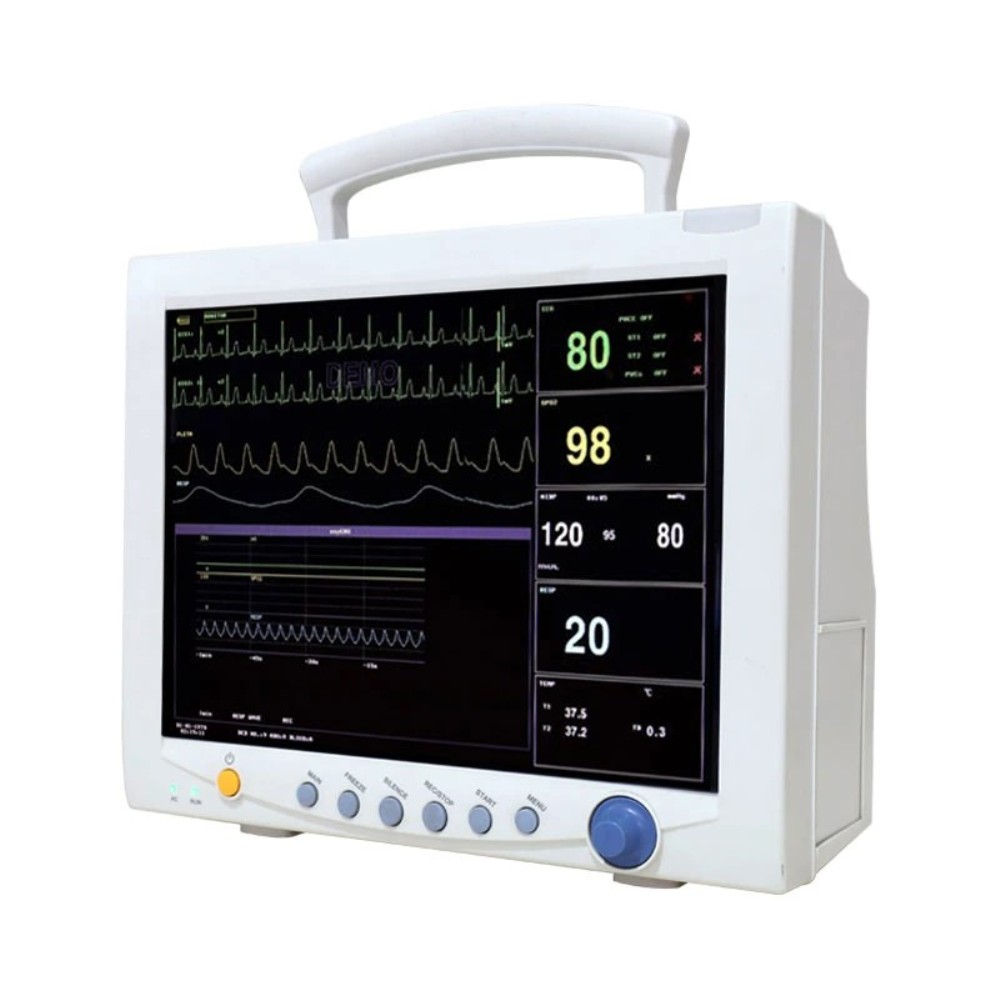

CMS7000 Multi Parameter Patient Monitor
A compact bedside patient monitor designed for continuous monitoring of adult, pediatric and neonatal patients. The CMS7000 combines ECG, respiration, SpO₂, pulse rate, non-invasive blood pressure and dual-channel temperature monitoring on a 12.1-inch colour TFT display, with extensive trend storage, waveform review, networking capability and rechargeable battery operation.
Comprehensive Bedside Monitoring in a Larger 12.1-Inch Format
The CMS7000 integrates vital-sign measurement modules, display and monitoring controls into a compact bedside unit intended for continuous patient observation. It supports standard monitoring of ECG, respiration, oxygen saturation, pulse rate, non-invasive blood pressure and dual-channel temperature across adult, pediatric and neonatal patients.
ECG Monitoring
3-lead or 5-lead ECG is included as standard, with 12-lead ECG available as an optional configuration.
Respiration
Supports respiration monitoring as part of the standard parameter set.
SpO₂ & Pulse Rate
Digital SpO₂ monitoring with anti-interference and weak-perfusion capability.
NIBP
Non-invasive blood pressure monitoring with storage for up to 2,400 NIBP data points.
Dual-Channel Temperature
Dual-channel temperature monitoring is included in the standard parameter configuration.
Optional Expansion
2-IBP, EtCO₂, recorder and 12-lead ECG are listed as optional configurations.

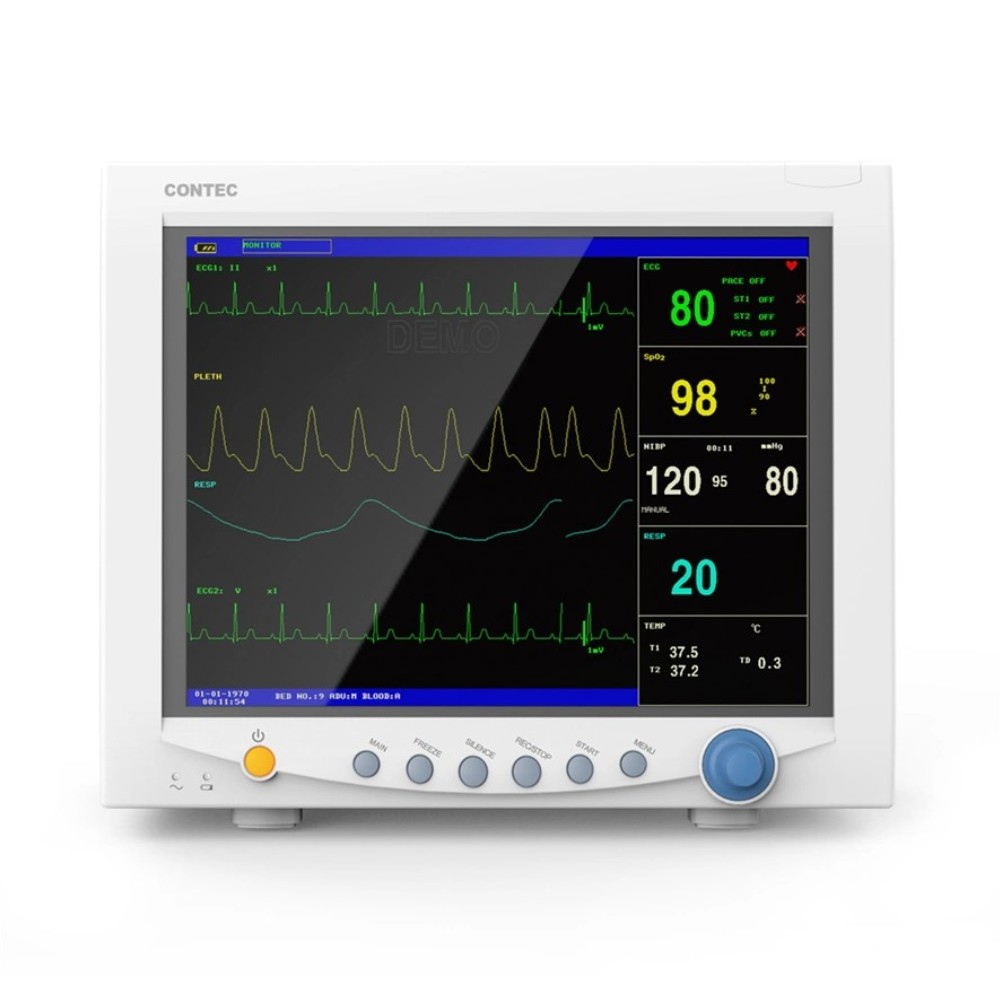

12.1-Inch High-Resolution Monitoring Display
The monitor uses a 12.1-inch colour TFT LCD designed to present patient parameters and waveforms together with alarms, bed number, clock, operating state and other monitoring information.
OxyCRG Screen
Includes an OxyCRG display mode for convenient review of selected respiratory and oxygenation information.
Trend Graph
Trend-graph display supports review of changes in monitored parameters over time.
Large-Character Display
Big-character interface improves visibility of key numerical parameters at bedside.
Other-Bed Observation
Supports observing other beds when used within a compatible central-monitoring network.
Customizable Settings
Monitoring content, scan speed, volume and output content can be configured as required.
Keys & Knobs
Routine operation is performed using physical keys and knobs.
Extended Trend and Waveform History
480-Hour Trend Data
Stores up to 480 hours of trend information for retrospective clinical review.
40-Second Holographic Waveforms
Supports review of 40-second holographic waveform records as stated in the supplied specification.
72-Hour ECG Waveforms
Stores and reviews up to 72 hours of ECG waveform data.
2,400 NIBP Records
Stores up to 2,400 non-invasive blood-pressure data points.
Drug Calculation
Includes a drug-concentration calculation function.
One-Key Printing
Printing of ECG, SpO₂, respiration, blood pressure and temperature data is supported when configured with the optional recorder.
Central Monitoring and Software Connectivity
The supplied specification states that the CMS7000 can connect to a central monitoring station, support other-bed observation and receive software updates through wireless and wired communication modes.
Central Monitoring Station
Supports networked bedside monitoring within a compatible central monitoring environment.
Wireless & Wired Modes
Wireless and wired connectivity modes are listed for networking and software-update functions.
Standard Parameters and Functions
| ECG | 3-lead / 5-lead ECG |
|---|---|
| RESP | Respiration monitoring |
| SpO₂ | Digital oxygen-saturation monitoring |
| NIBP | Non-invasive blood pressure monitoring |
| TEMP | Dual-channel temperature monitoring |
| PR | Pulse-rate monitoring |
| Network | Networking capability for central-monitor integration |

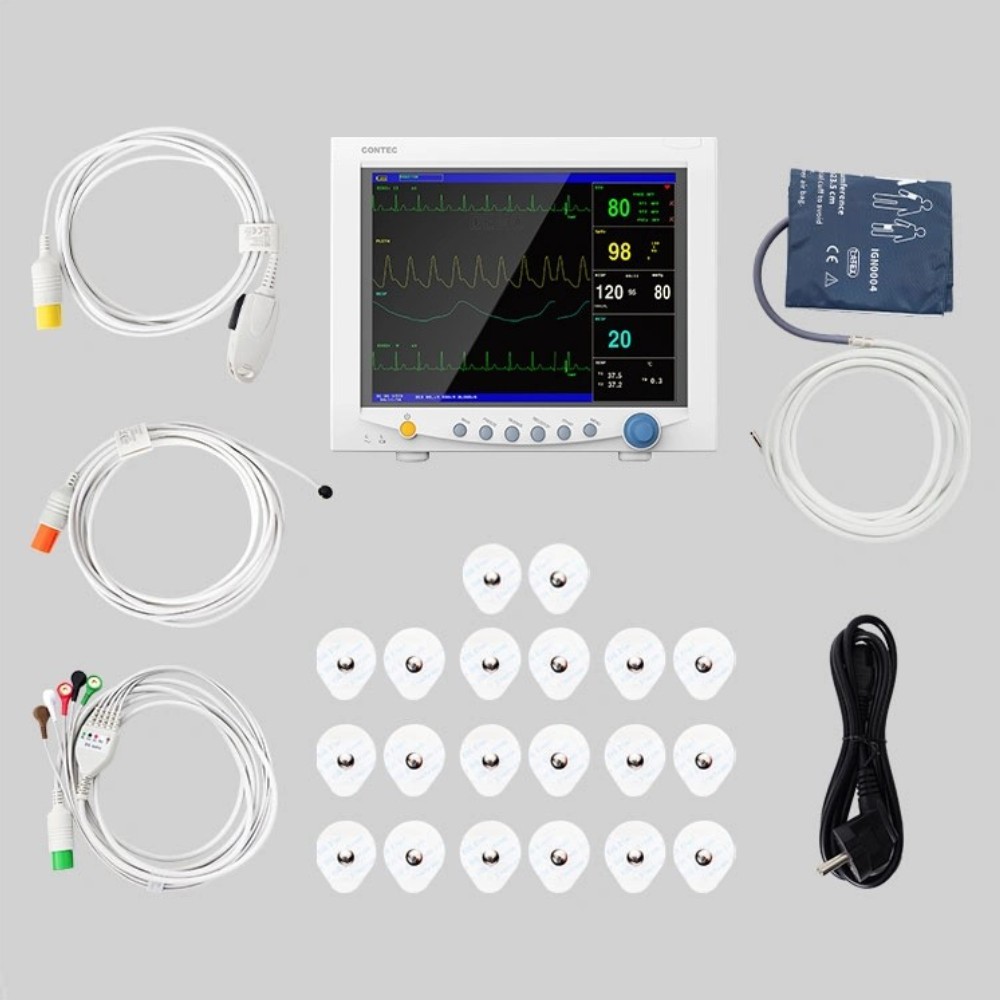

Expandable Monitoring and Recording Options
The following items are listed as optional and should not be assumed to be included in the standard CMS7000 configuration.
2-IBP
Dual-channel invasive blood-pressure monitoring option.
Recorder
Optional built-in recording/printing configuration for patient data output.
12-Lead ECG
Optional 12-lead ECG monitoring configuration.
EtCO₂
Optional end-tidal carbon-dioxide monitoring configuration.
HRV Analysis
Heart-rate-variability analysis is listed as an optional function.
Mounting Options
Curving handle, moving bracket and hanging bracket are listed as optional accessories/configurations.
Digital Oxygen-Saturation Monitoring
Anti-Interference Design
The supplied specification describes digital SpO₂ technology with strong resistance to measurement interference.
Weak-Perfusion Capability
The monitor is described as having anti-weak-filling capability for challenging signal conditions.
Multi-Language User Interface
| Standard Languages | Chinese and English |
|---|---|
| Optional Languages | French, German, Italian, Dutch, Portuguese, Turkish, Spanish and Polish |
| Controls | Keys and knobs |

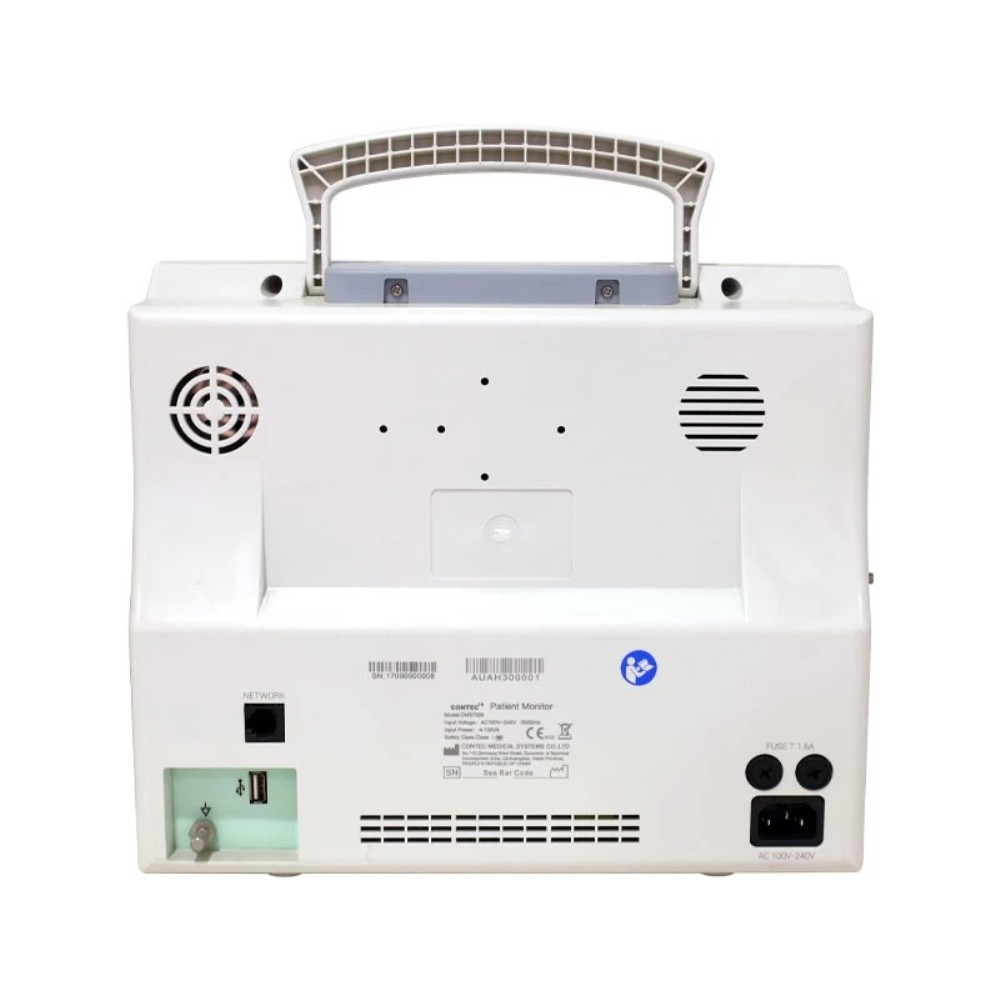

Power Supply and Protection Features
| Power Requirement | AC 100–240 V, 50/60 Hz |
|---|---|
| Power Consumption | 150 VA |
| Battery | Built-in rechargeable battery |
| High-Frequency Surgical Unit Protection | Supported as stated in the supplied specification |
| Defibrillation Protection | Defibrillation-proof when used with the specified special leads |
Compact Bedside Form Factor
| Display | 12.1-inch colour TFT LCD |
|---|---|
| Dimensions | 310 × 140 × 263 mm |
| Weight | Approximately 3.8 kg |
| Patient Categories | Adult, pediatric and neonatal |
