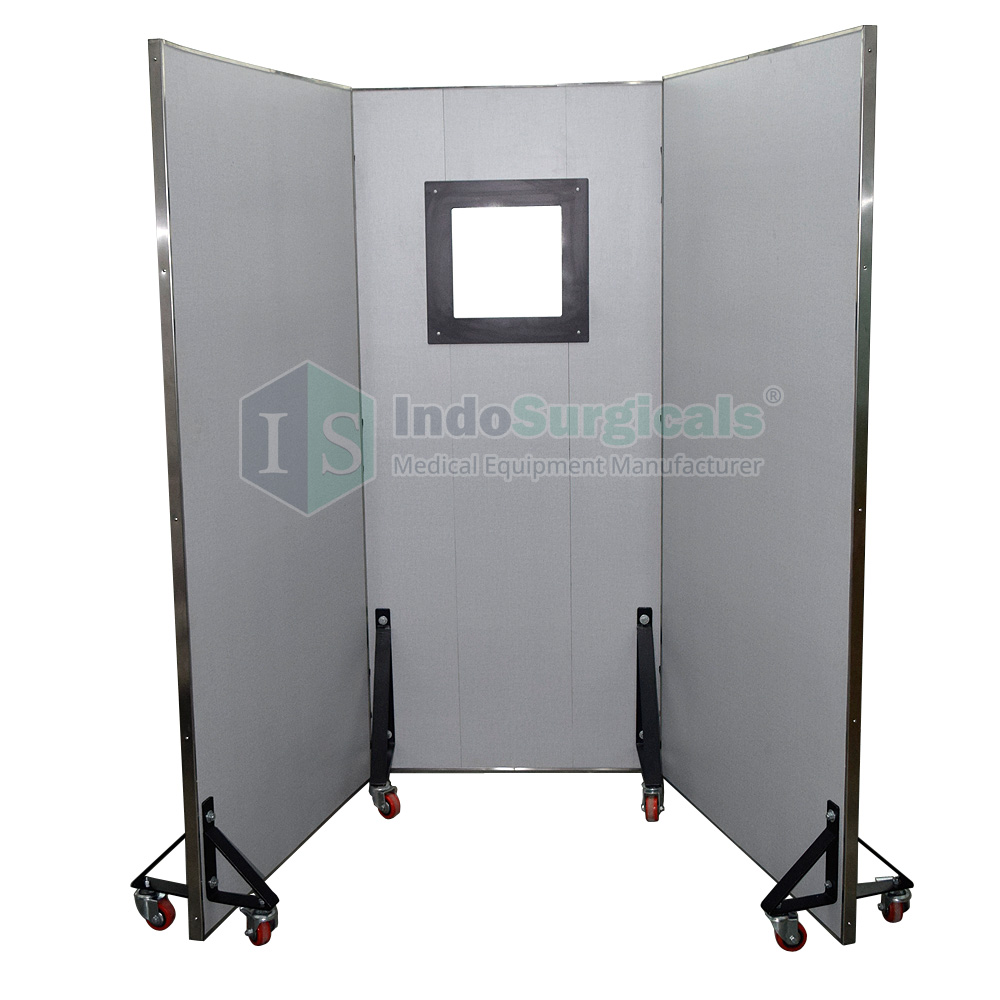

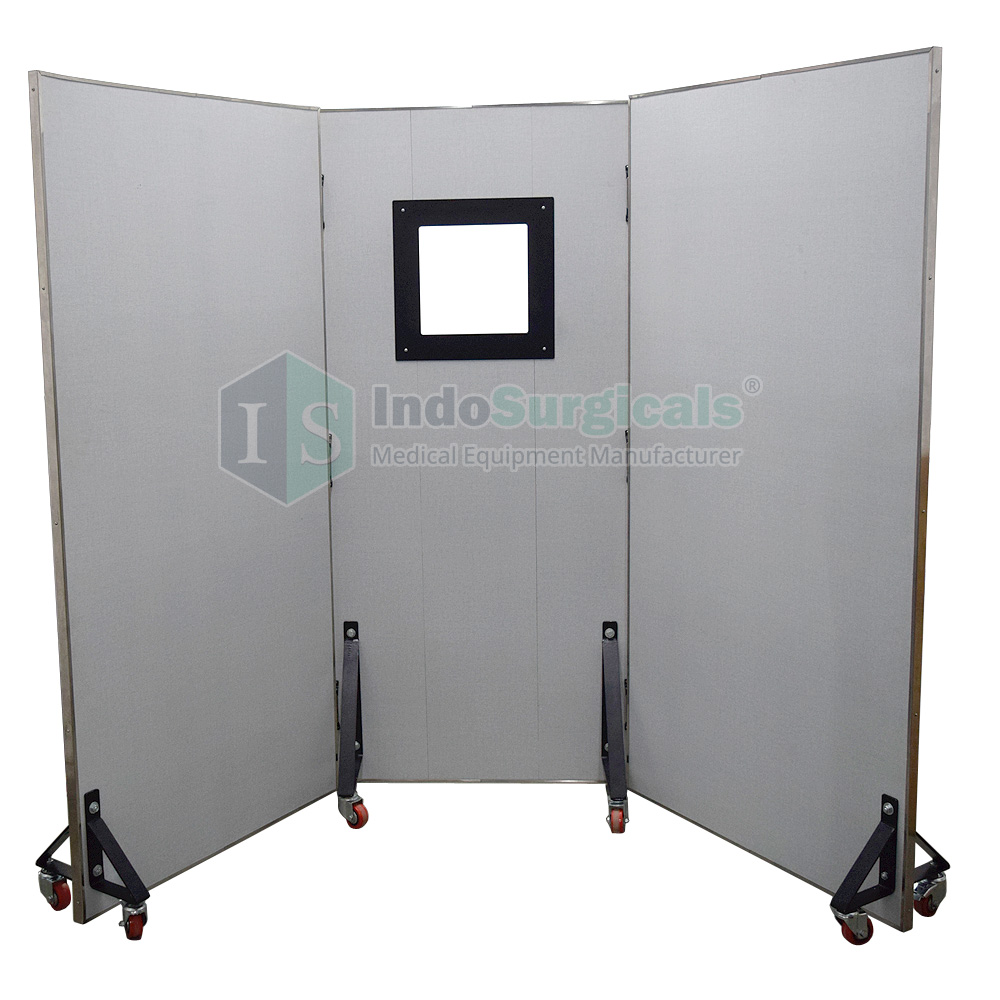

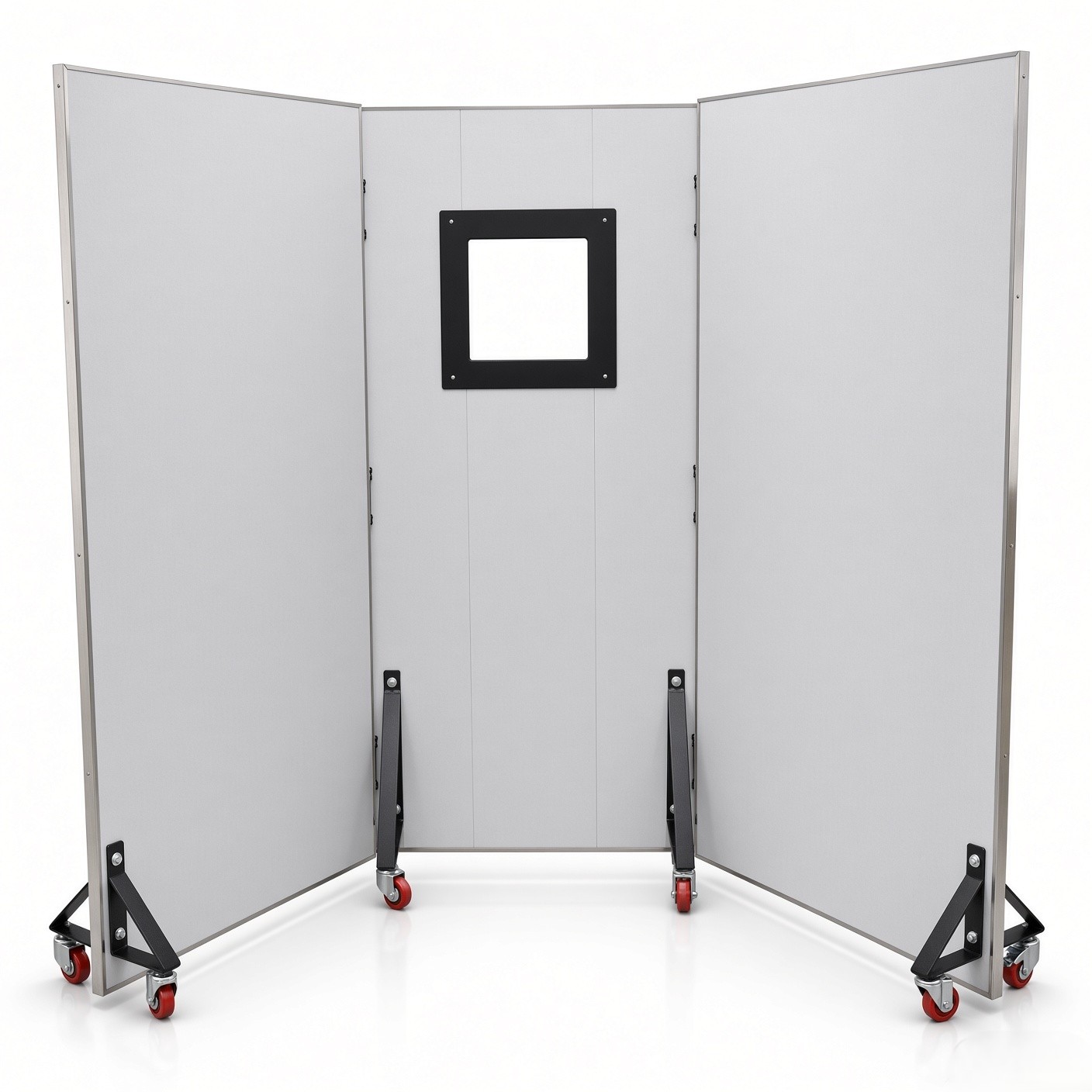

Radiation Protection Lead Barrier (Triple Panel)
A wider triple-panel mobile radiation barrier with published overall size of approximately 72 x 72 inches, a 7 x 7 inch lead-glass viewing window and 1.0 to 3.0 mmPb options.
Product Highlights
- Triple-panel mobile shielding
- Approx. 72 x 72 in overall size
- 1.0, 1.5, 2.0 or 3.0 mmPb options
- 7 x 7 in lead-glass viewing window
- Four heavy-duty swivel locking castors stated
Intended Use & Coverage
The triple-panel barrier is intended for facilities requiring broader movable shielding coverage than the single-panel configuration. Typical environments can include radiology, cath lab, fluoroscopy, C-arm and other medical X-ray areas where a facility-specific shielding assessment supports its use.
Selecting Lead Equivalency
The active variants provide 1.0, 1.5, 2.0 and 3.0 mmPb barrier options. Selection should be based on room design, equipment, workload, working position and radiation-protection assessment.
Viewing Window & Mobility
The supplied record states a 7 x 7 inch lead-glass viewing window and four heavy-duty swivel locking castors. The separate lead equivalency of the viewing glass is not stated and should be confirmed if required by a tender or shielding specification.
Dimension Clarification
The category-level published information identifies approximately 72 x 72 inches as the overall size. The previous product copy ambiguously described each panel as that size; the Gold Standard description therefore uses the safer overall-dimension wording unless product-specific dimensional evidence establishes otherwise.
Technical Details
| Panel configuration | Triple panel |
|---|---|
| Overall size | Approx. 72 x 72 in (category-level published specification) |
| Barrier options | 1.0, 1.5, 2.0 or 3.0 mmPb |
| Viewing window | 7 x 7 in lead glass stated |
| Mobility | Four heavy-duty swivel locking castors stated |
Product FAQs
Which mmPb options are available?
The active variant set lists 1.0, 1.5, 2.0 and 3.0 mmPb barrier configurations.
What overall size is currently published?
The category-level specification states approximately 72 x 72 inches overall.
Why is the old each-panel 72 x 72 wording not repeated?
The earlier product copy was ambiguous. The Gold Standard description uses the supported category-level overall dimension until product-specific evidence establishes panel-by-panel dimensions.
How should the barrier be selected?
Use the facility's shielding assessment, working position, required coverage, movement space and technical-document requirements.
Request a Current Quotation
Share the required configuration, quantity, delivery destination and any tender or documentation requirement. Final supply should be confirmed against the current quotation and product-specific specification.
