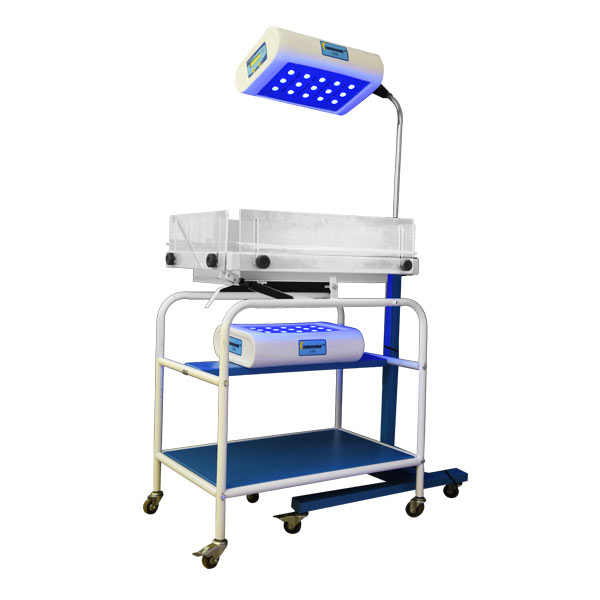

Double Surface Phototherapy Unit with 15 LED

IndoSurgicals Private Limited is renowned as one of the largest and most trusted manufacturers, suppliers, and exporters of the best quality Double Surface Phototherapy Unit with 15 LEDs worldwide. Our phototherapy units are critical in surgery centers, hospitals, and clinics, providing advanced treatment for neonatal jaundice. As a top manufacturer and supplier, IndoSurgicals is dedicated to delivering superior medical equipment that meets the highest standards of quality and performance, trusted by healthcare professionals globally.

Product Use:

The IndoSurgicals Double Surface Phototherapy Unit with 15 LEDs is designed to treat neonatal jaundice effectively. This condition, common in newborns, is caused by high levels of bilirubin, a substance that can lead to serious complications if not properly managed. Our phototherapy unit uses high-intensity LED lights to break down bilirubin, converting it into a harmless, water-soluble form that can be easily excreted from the infant’s body. This non-invasive treatment is essential for preventing severe complications and promoting healthy development in newborns.

Product Specifications:

Our phototherapy unit integrates cutting-edge technology, ensuring optimal performance and durability.

• LEDs: 9-12 high power LEDs (blue, white LED optional)
• Irradiance: >42 mw/cm²/nm at 30cm
• Wavelength: 420-480 nm
• Effective Area: 50 cm x 30 cm
• Light Source Lifetime: Minimum 25,000 hours, with less than 10% change in illumination after 25,000 hours
• Intensity Variation: <10% over 6 hours

Electrical Specifications:

• Input Voltage: 100-240 V, 50-60 Hz

Dimensions:

• Front: 18” (L) x 8.5” (W) x 3” (H)
• Height (adjustable): Min: 1230 mm, Max: 1600 mm
• Length: 800 mm
• Width: 720 mm

Baby Bassinet:

• Clear collapsible fold-down side panels
• Baby tray with a transparent base for undersurface phototherapy usage
• Lower shelf
• Movable castors
• Undersurface LED phototherapy: Same as overhead, placed under the bassinet

Double Surface Phototherapy Unit:

• Combination of overhead phototherapy unit and undersurface phototherapy with baby bassinet

Optional Features:

• LCD digital timer for lamp usage hours and patient exposure

IndoSurgicals’ dedication to quality and innovation ensures that our Double Surface Phototherapy Unit with 15 LEDs is a standout solution for treating neonatal jaundice. Trusted by healthcare providers worldwide, we continue to lead the industry in medical equipment excellence.
