Ambulance Stretcher with Folding Legs, Adjustable Backrest & 181 kg Load Capacity
The IndoSurgicals Ambulance Stretcher with Folding Legs is a wheeled emergency patient-transport stretcher designed for loading, unloading and moving patients in compatible ambulances and healthcare environments. Manufactured from high-strength aluminium alloy, it combines mechanically folding legs, an adjustable backrest, cushioned waterproof patient surface, safety locking arrangement and approximately 125 mm castors. The current published load-bearing capacity is 181 kg.
Wheeled Ambulance Loading Stretcher for Emergency Patient Transport
Unlike manually carried folding stretchers, this IndoSurgicals Ambulance Stretcher incorporates a wheeled undercarriage and mechanically folding legs to support patient movement between ground level, healthcare environments and compatible ambulance loading decks.
The frame is manufactured from high-strength aluminium alloy. In its high position, the published overall dimensions are 190 × 54 × 90 cm. The stretcher can be lowered to approximately 190 × 54 × 25 cm, allowing the leg assembly to fold beneath the patient platform for ambulance loading and low-level positioning.
A foam-cushioned patient platform with waterproof covering provides a practical support surface, while the adjustable backrest allows the patient's upper-body position to be changed when clinically appropriate.
Buyers searching for an Ambulance Stretcher manufacturer in India, Ambulance Stretcher with folding legs, Ambulance Loading Stretcher, Emergency Stretcher Trolley, Aluminium Ambulance Stretcher, 181 kg patient stretcher or Ambulance Stretcher exporter from India can contact IndoSurgicals for current specifications, compatibility requirements and quotation.
Folding Leg Mechanism
Mechanical legs fold to support loading and unloading from compatible ambulance vehicle platforms.
Aluminium Alloy Frame
High-strength aluminium alloy construction forms the main stretcher and undercarriage structure.
Adjustable Backrest
Backrest can be repositioned according to patient-support and transport requirements.
Cushioned Patient Surface
Foam cushioning with waterproof covering provides a practical patient-support platform.
Safety Lock
A safety locking arrangement is incorporated into the stretcher design for secure positioning.
125 mm Castors
Current specification lists an approximate castor size of 125 mm for wheeled movement.
Mechanically Folding Legs for Ambulance Loading & Unloading
The stretcher uses a mechanically folding undercarriage controlled by handles located on both sides. During appropriate ambulance loading, the leg assembly can fold beneath the patient platform as the stretcher transitions to the lower position.
The current specification also describes a three-step design intended to accommodate the height of the ambulance carriage bottom board. Vehicle compatibility should be confirmed before procurement because ambulance deck heights and retention systems can vary.
High Transport Position
Published high-position dimensions are 190 × 54 × 90 cm, providing a wheeled transport height for movement outside the vehicle.
Low / Loading Position
Published low-position dimensions are 190 × 54 × 25 cm, with the leg assembly folded beneath the patient platform.
Foam-Cushioned Waterproof Surface with Adjustable Backrest
The patient-support surface is described as a foamed cushion with waterproof material. This provides a padded transport surface and supports routine cleaning between uses using methods compatible with the supplied materials.
Foam Cushion
Cushioned support surface provides padding during patient transportation.
Waterproof Covering
Current specification identifies the patient surface covering as waterproof material.
Adjustable Back Section
Backrest elevation can be changed when a different upper-body position is required.
181 kg Published Load Capacity with High & Low Positions
High Position
Published overall dimensions with the stretcher undercarriage raised.
Low Position
Published dimensions with the stretcher lowered for loading or positioning.
Self-Weight
Published finished stretcher weight in the current product specification.
Load Bearing Capacity
Current published load-bearing capacity for this Ambulance Stretcher model.
Wheeled Patient Movement with Approximately 125 mm Castors
The stretcher is fitted with castors for movement through compatible ambulance loading areas and healthcare environments. The current specification lists the castor diameter as approximately 125 mm.
Wheeled Transport
Castor-based undercarriage allows the stretcher to be rolled rather than manually carried during suitable portions of patient transfer.
Folding Undercarriage
The wheeled leg assembly folds beneath the platform to transition between normal transport and ambulance-loading positions.
Safety Lock with Patient-Support Features
The published specification includes a safety lock intended to secure the stretcher during transport and loading operations.

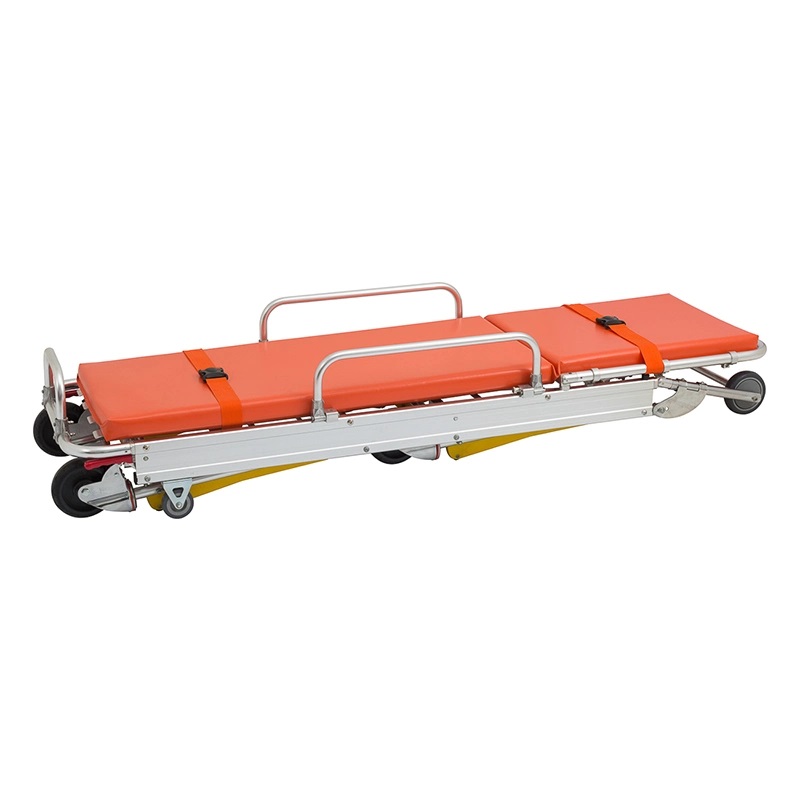

Current official product photography also shows raised side support rails and patient securing straps. Because their exact dimensions, number, locking mechanism and restraint specification are not separately defined in the text specification, they are treated here as visible product features rather than independently certified technical claims.
Safety Lock
Current specification confirms a locking feature for securing the stretcher during transport.
Side Support Rails
Current official imagery shows side rails along the patient-support area; confirm supplied configuration.
Patient Securing Straps
Straps are visible in current official imagery; exact restraint specification should be confirmed for the supplied unit.
Applications of Ambulance Stretchers with Folding Legs
This stretcher is intended for emergency and patient-transport environments where a wheeled stretcher must transition between ground-level movement and ambulance loading.
Ambulance Services
Designed for compatible ambulances requiring a mechanically folding loading stretcher.
Emergency Medical Services
Suitable for emergency-response teams transporting patients between vehicles and healthcare facilities.
Hospitals
Can support patient movement from ambulance reception areas into emergency departments.
Emergency Departments
Useful where wheeled patient-transfer equipment interfaces with incoming ambulance transport.
Clinics & Healthcare Facilities
Suitable where ambulance-compatible patient transfer equipment is required.
Institutional Ambulances
Can be specified for industrial, institutional or healthcare ambulance fleets subject to vehicle compatibility.
Ambulance Stretcher with Folding Legs Specifications
| Product Type | Wheeled Ambulance Stretcher with Mechanical Folding Legs |
|---|---|
| Frame Material | High-strength aluminium alloy |
| Loading Design | Three-step design according to ambulance carriage bottom-board height |
| Leg Mechanism | Mechanically folding legs controlled through operating handles on both sides |
| High Position | 190 × 54 × 90 cm |
| Low Position | 190 × 54 × 25 cm |
| Self-Weight | 40 kg |
| Published Load Bearing Capacity | 181 kg |
| Patient Surface | Foamed cushion with waterproof material |
| Backrest | Adjustable |
| Safety Feature | Safety locking arrangement |
| Castor Size | Approximately 125 mm |
| Side Rails | Visible in current official product imagery; exact specification should be confirmed |
| Patient Securing Straps | Visible in current official product imagery; exact supplied restraint specification should be confirmed |
| Typical Applications | Ambulances, EMS, emergency departments, hospitals and ambulance-compatible patient transport |
Ambulance Stretcher vs Two-Fold & Four-Fold Stretchers
All three products sit within the IndoSurgicals Ambulance & Folding Stretchers category, but they serve distinctly different patient-transport requirements.
Ambulance Stretcher
This model has wheels, folding legs, adjustable backrest and vehicle-loading functionality.
Two-Fold Stretcher
Portable manually carried aluminium stretcher with two-fold storage design and carry bag.
Four-Fold Stretcher
Portable manually carried model designed to fold into a particularly compact stored form.
Inspect the Stretcher and Loading Mechanism Before Use
Ambulance loading stretchers contain moving undercarriage, locking and positioning components. These parts should be inspected before patient transport and before loading the stretcher into a vehicle.
Check Folding Legs
Verify that the leg mechanism moves correctly and fully engages in the intended transport position.
Check Locks & Castors
Inspect locking components, wheels and mechanical connections before placing the stretcher into service.
Use Trained Personnel
Patient transfer, loading and unloading should follow appropriate ambulance and healthcare handling procedures.
Maintain the Frame, Cushion, Castors and Folding Mechanism
Clean Patient Surfaces
Clean and disinfect the waterproof-covered patient surface using methods compatible with the supplied materials.
Inspect Mechanical Parts
Periodically inspect folding legs, handles, locking points, hinges and frame connections.
Check Castors
Inspect castors for damage, abnormal movement, wear or obstruction before patient transport.
Ambulance Stretcher Manufacturer and Supplier in India
IndoSurgicals Private Limited manufactures and supplies hospital furniture, ambulance stretchers, emergency patient-transport products and medical equipment for hospitals, ambulance operators, emergency-service providers, healthcare institutions, dealers, distributors, project buyers and international customers.
Buyers searching for an Ambulance Stretcher manufacturer in India, Ambulance Loading Stretcher supplier, Ambulance Stretcher with folding legs, Aluminium Ambulance Stretcher, Emergency Stretcher Trolley, 181 kg Ambulance Stretcher, Folding Leg Patient Stretcher or Ambulance Stretcher exporter from India can contact IndoSurgicals for current specifications, vehicle compatibility requirements, quantity and quotation.
Request a Quote for Ambulance Stretchers
Share the required quantity, delivery destination and, where applicable, ambulance floor/loading-height information for current specifications, compatibility confirmation and commercial quotation.
